37-1-615 Page 36

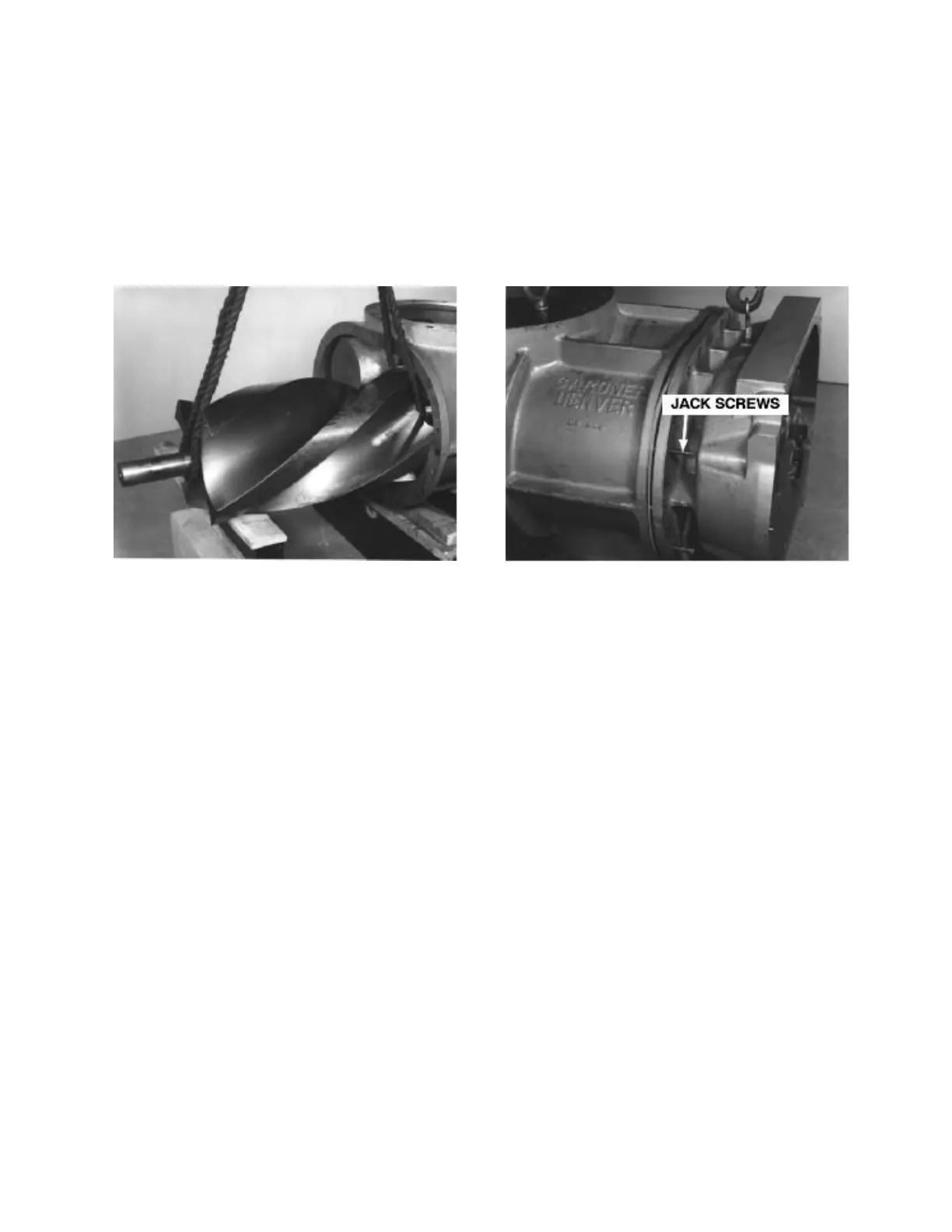

FIGURE 6 10
FIGURE 6-11
10. When the rotor shaft is free of bearings, work the rotor through the housing (1) and rig a sling to
complete removal of the rotor from the housing, Error! Reference source not found.. Handle
with care to prevent burrs on rotors and housing. Repeat Steps 9 and 10 on the second rotor.
11. After removal of the rotors (2, 3), rearrange blocking so the discharge end bearing carrier (5)
hangs free. Remove all screws and jack the carrier evenly from the dowel pins, Error!
Reference source not found.. Support the carrier as it is removed.
Remove bearings (29, 30), lip type oil seal (27, 28) and rotor shaft seals (18, 19).
