Gardner Denver AUTO SENTRY EAU99P - Lubrication, Cooling, and Sealing; Turn Valve Operation

To Next Page

To Previous Page

13-10-615 Page 10

LUBRICATION, COOLING AND SEALING - Oil is forced by air pressure from the oil reservoir through

the oil cooler, thermostatic mixing valve, and oil filter and discharges into the compressor main oil gallery.

A portion of the oil is directed through internal passages to the bearings, gears and shaft oil seal. The

balance of the oil is injected directly into the compression chamber to remove heat of compression, seal

internal clearances and lubricate the rotors.

TURN VALVE - The turn valve is a rotary helical valve located on the discharge side of the cylinder

toward the inlet end. The valve opens and closes ports in the cylinder which communicates with the inlet

passage. This varies the compressor rotor volume to match the demand for air, thus reducing the part-

load power requirement.

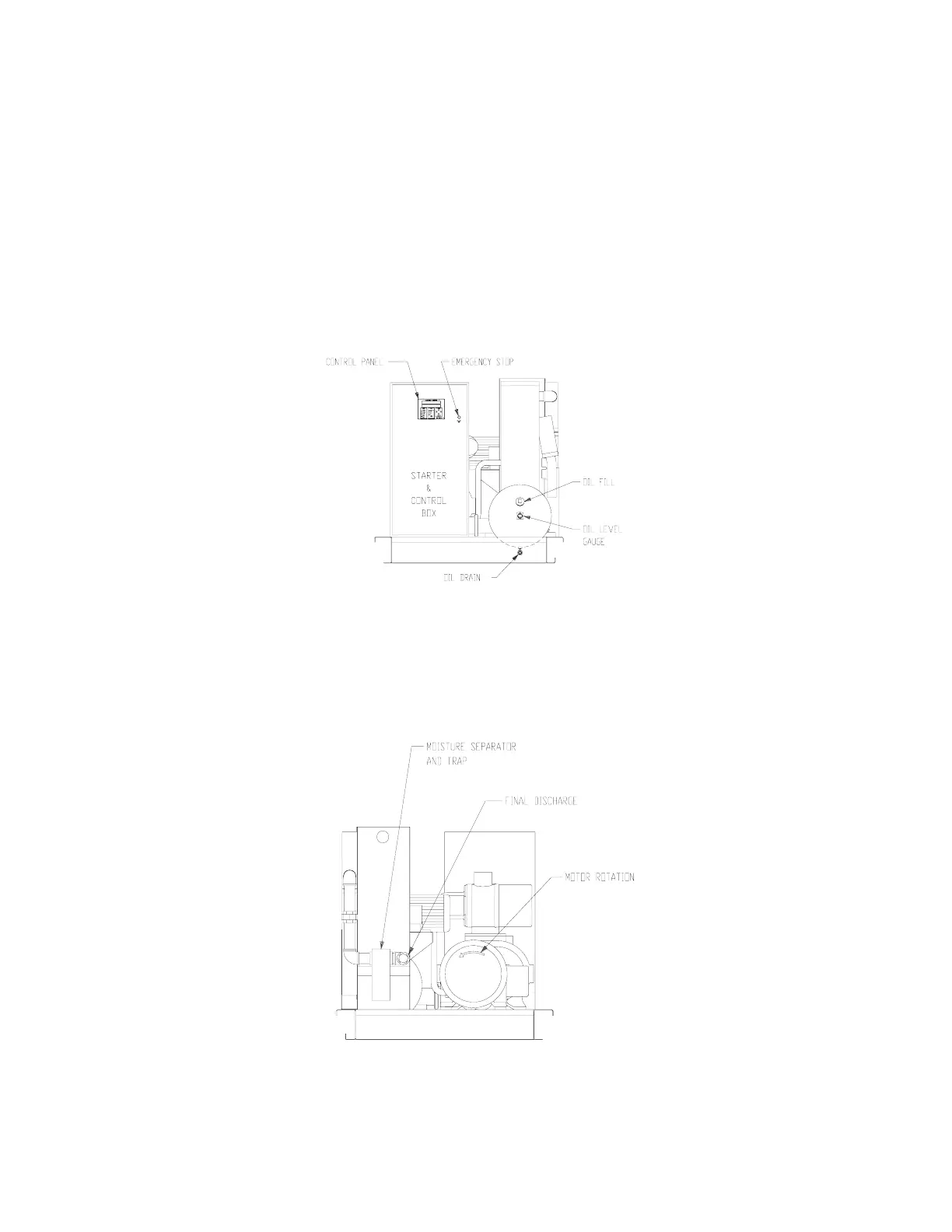

Figure 1-2 - STARTER BOX

Figure 1-3 – PACKAGE – CONTROLLER & STARTERS

201EAU797

(Ref. Drawing)
