Gardner Denver AUTO SENTRY EAU99P - Figure 4-9 - Control Schematic - Compressor Fully Unloaded - Low Demand Mode Switch on

72 pages

Save Page as PDF

To Next Page

To Previous Page

13-10-615 Page 36

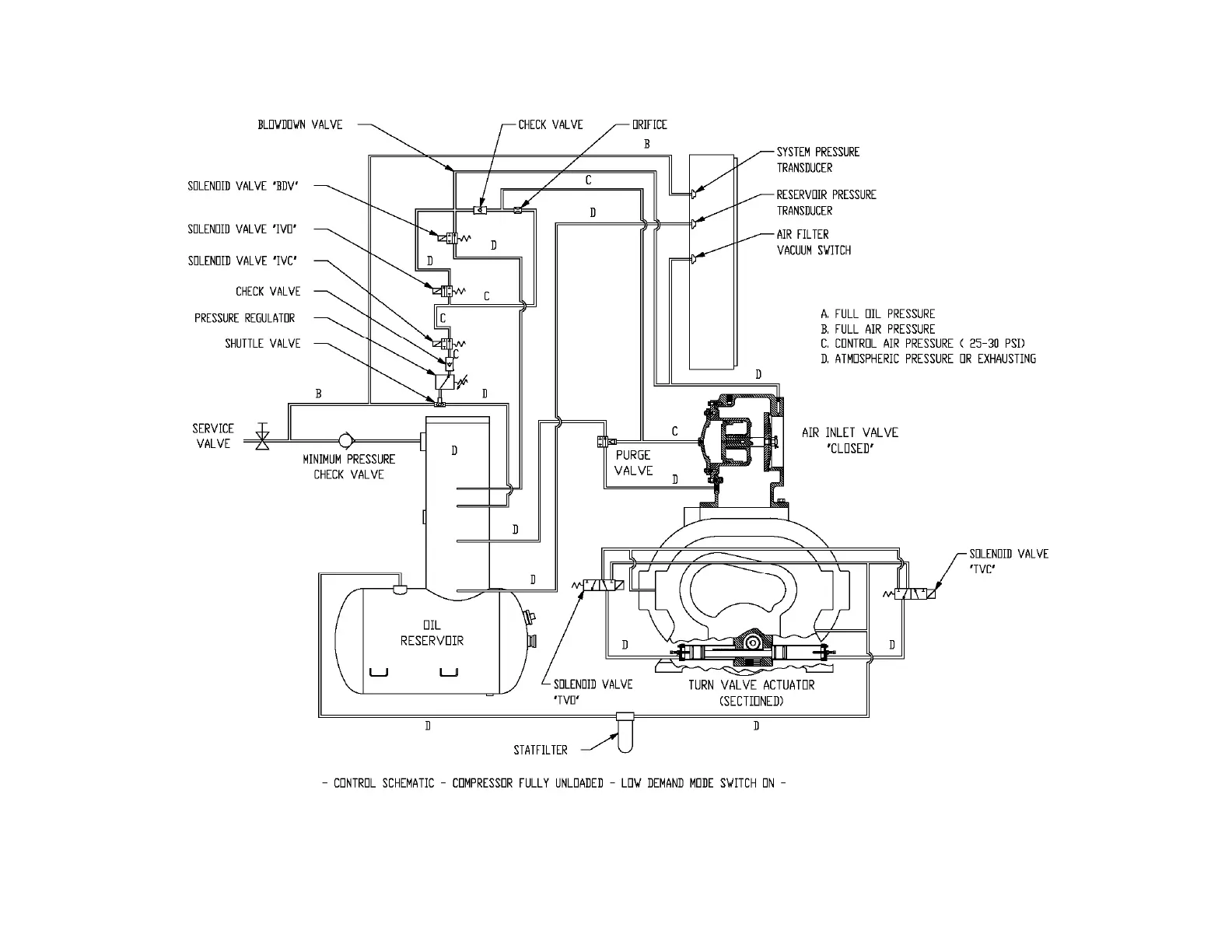

Figure 4-9 – CONTROL SCHEMATIC – COMPRESSOR FULLY UNLOADED – LOW DEMAND MODE SWITCH ON

208EAU797-B

(Ref. Drawing)
