13-10-615 Page 34

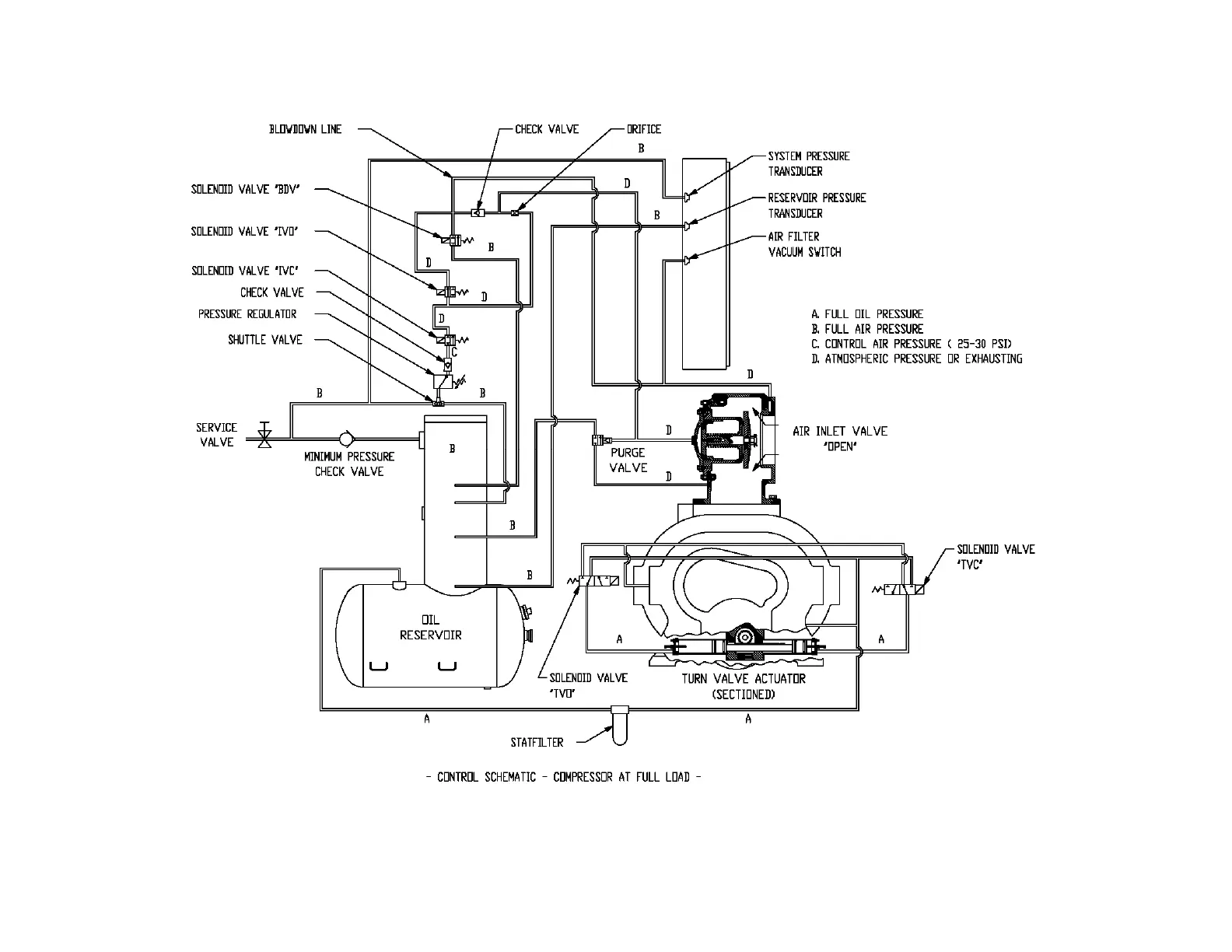

Figure 4-7 – CONTROL SCHEMATIC – COMPRESSOR AT FULL LOAD
206EAU797-B
(Ref. Drawing)
