STANDBY MODE (MANUAL)
NOTE: In Standby Mode, the IDENT function is inoperative.
Standby Mode can be selected at any time by pressing the STBY Softkey. In Standby, the transponder
is powered and new codes can be entered, but no replies or squitters are transmitted.. When Standby is
selected, a white STBY indication and transponder code appear in the mode field of the Transponder Data
Box. In all other modes, these fields appear in green.
STBY Mode (White
Code Number and
Mode)

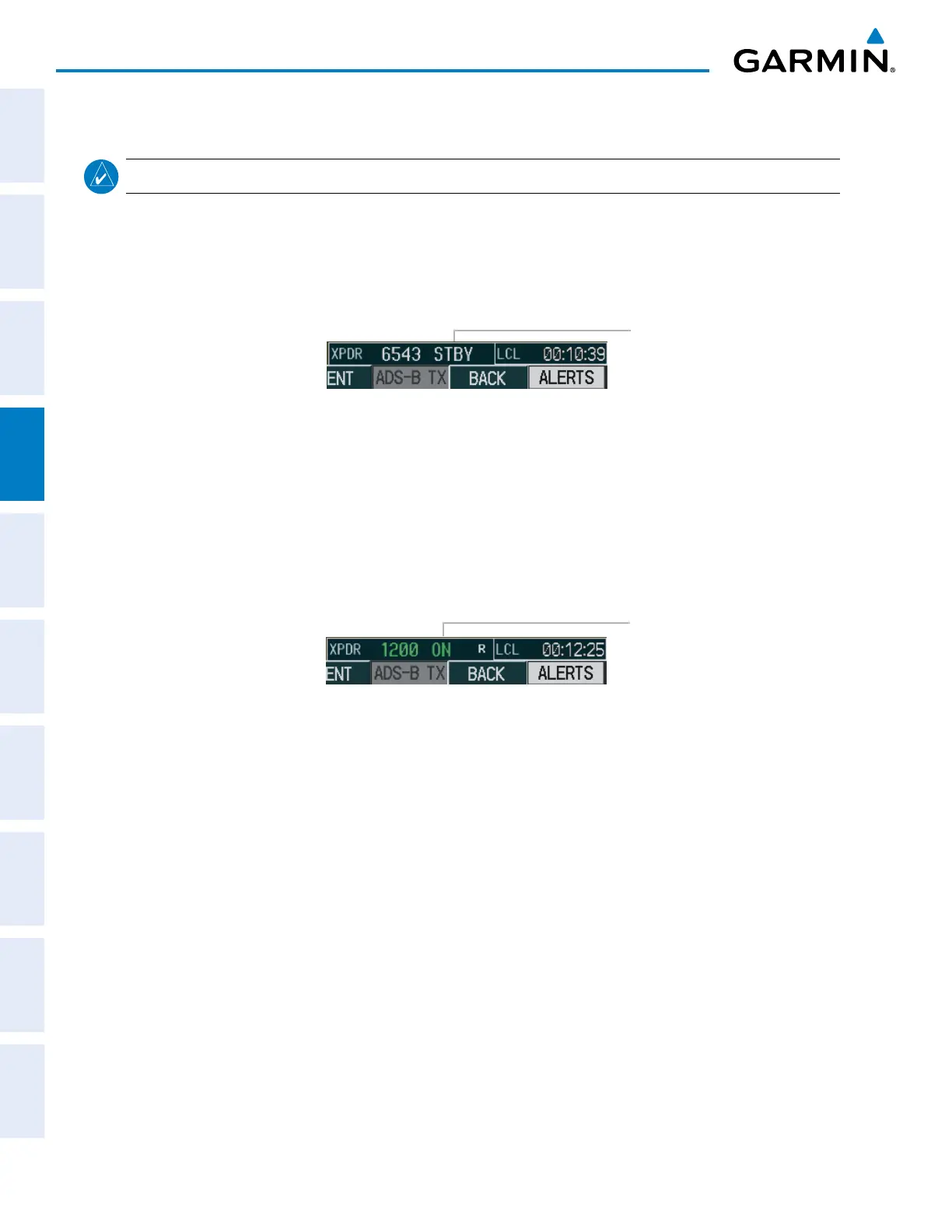

Figure 4-31 Standby Mode
MANUAL ON MODE
ON Mode can be selected at any time by pressing the ON Softkey. ON Mode generates Mode A and Mode S
replies as well as transmission of acquisition and extended squitters, including ADS-B out (if equipped).
Mode C altitude reporting is inhibited. In ON Mode, a green ON indication and transponder code appear in
the mode field of the Transponder Data Box.
ON Mode
(No Altitude
Reporting)
Figure 4-32 ON Mode
