10) At Lamar VOR (LAA) V263 is intercepted. See Figure 5-126.

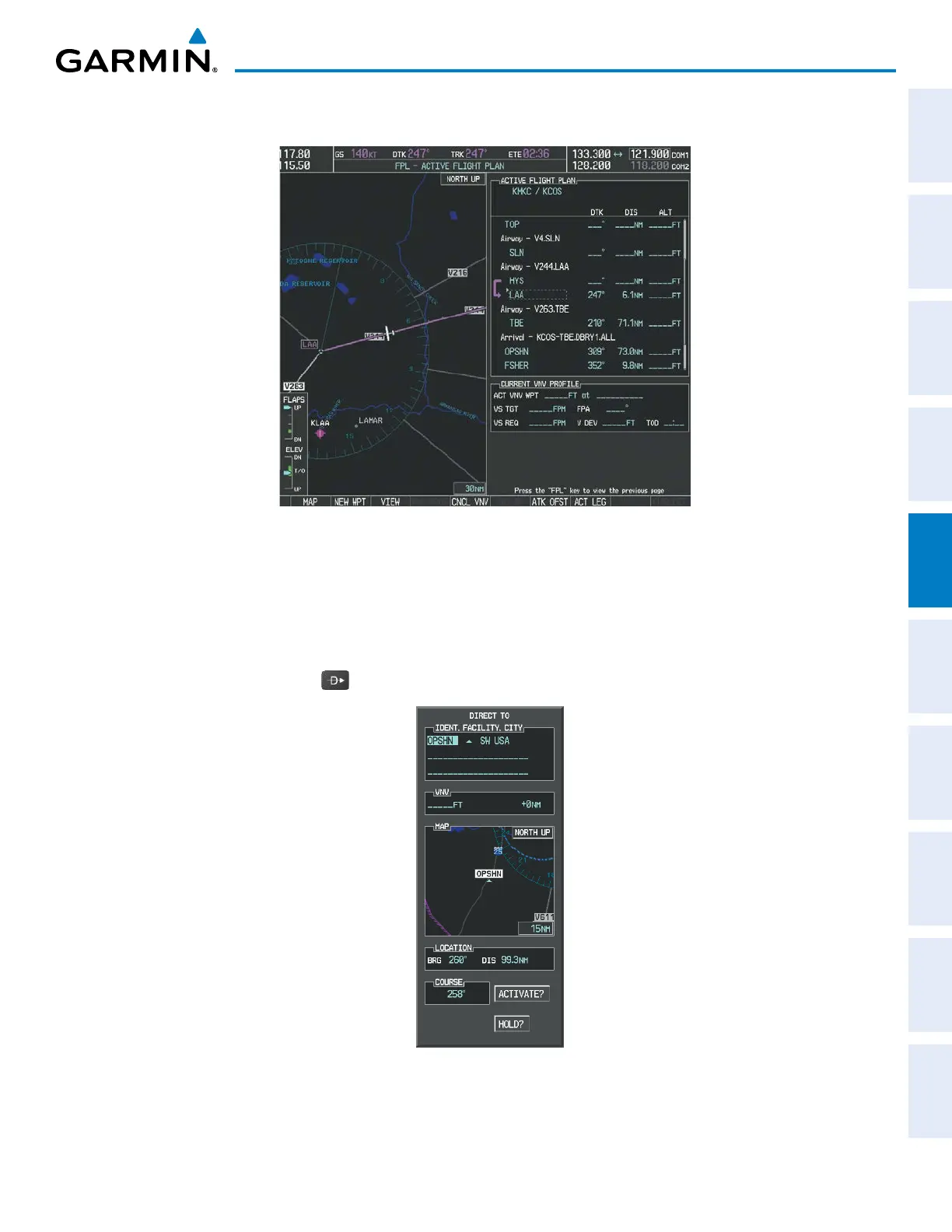

Figure 5-126 HYS to LAA Leg Active
11) ATC grants clearance to proceed direct to the OPSHN intersection to begin the arrival procedure. ATC advises
to expect an altitude of 10,000 feet at OPSHN.
a) Press the FMS Knob to activate the cursor.
b) Turn the large FMS Knob to select OPSHN in the flight plan list.
c) Press the
Direct-to
( )
Key. The Direct-to Window is now displayed as shown in Figure 5-127.
Figure 5-127 Direct To OPSHN
