Pressing the STAR Softkey displays the Standard Terminal Arrival Chart if available.
Change Range
and Scroll
Through the
Chart With the
Joystick

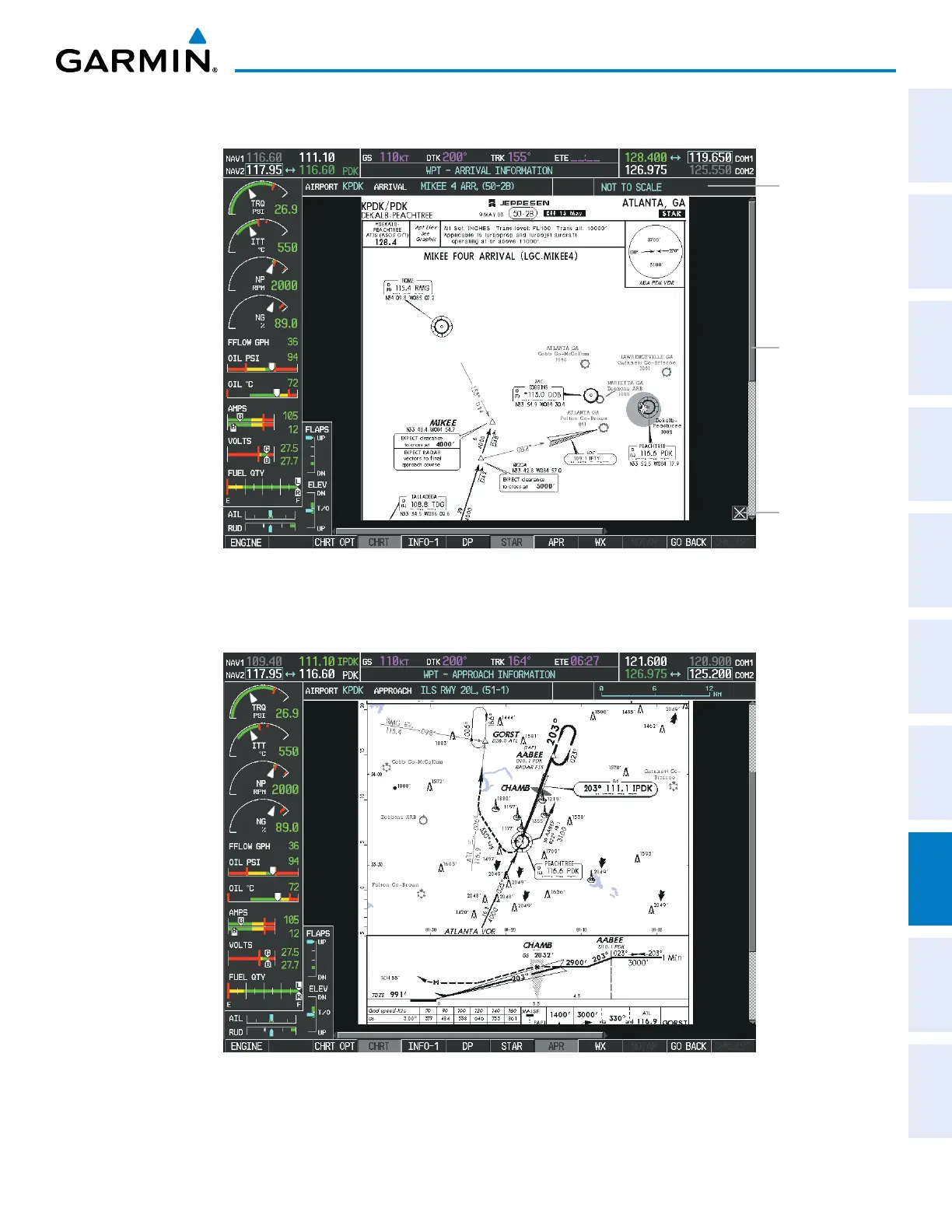

Figure 8-30 Arrival Information Page
Chart Not
To Scale
Aircraft Not
Shown Icon
Pressing the APR Softkey displays the approach chart for the airport if available.
Figure 8-31 Approach Information Page
