FliteCharts time critical information can also be found on the AUX - System Status page. The FliteCharts
database REGION, CYCLE number, EFFECTIVE, EXPIRES, and DISABLES dates of the subscription appear in
either cyan or yellow text. Dates shown in cyan are current data. Dates shown in yellow indicate the data is not
within the current subscription period.
FliteCharts becomes inoperative 180 days after the FliteCharts EXPIRES date is reached, and is no longer
available for viewing. This date is shown as the DISABLES date. After the disable date the
SHW CHRT
Softkey
label appears subdued and is unavailable until a revised issue of FliteCharts is installed.
NOTE
: A subdued softkey label indicates the function is disabled.
Press the MFD1 DB Softkey to place the cursor in the DATABASE window. Scroll through the listed
information by turning the FMS Knob or pressing the ENT Key until the FliteCharts database information is
shown.
The FliteCharts database cycle number shown in the figure, 1402, is deciphered as follows:
14 – Indicates the year 2014
02 – Indicates the second issue of the FliteCharts database for the year
The FliteCharts EFFECTIVE date 10–FEB–14 is the first date that this database is current.
The FliteCharts EXPIRES date 10–MAR–14 is the last date that this database is current.
The DISABLES date 06–SEP–14 is the date that this database becomes inoperative.
FliteCharts
Data

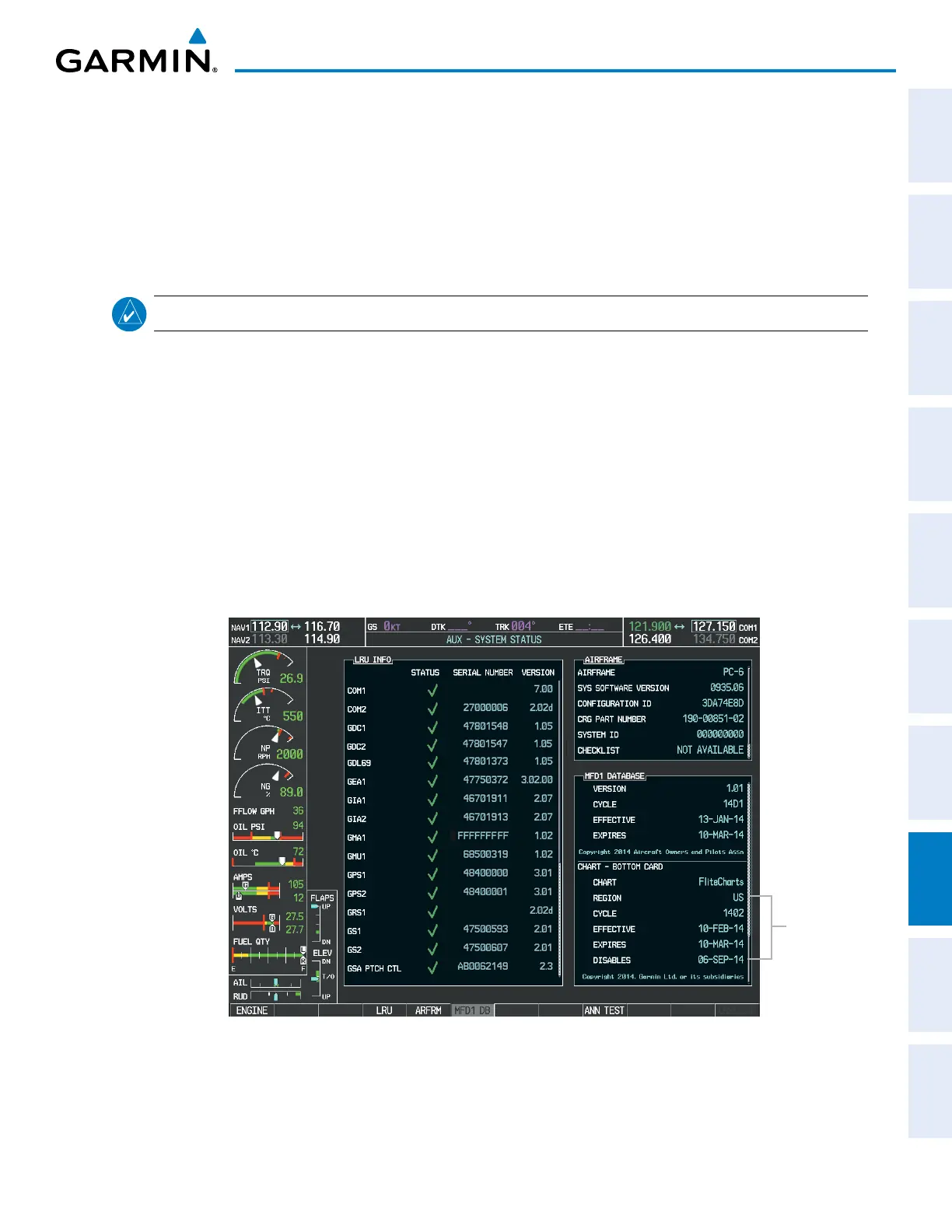

Figure 8-70 AUX – System Status Page, FliteCharts Current and Available
The FliteCharts database is provided from Garmin. Refer to Updating Garmin Databases in Appendix B for
instructions on revising the FliteCharts database.
