The other four possible AUX - System Status page conditions are shown here. The EFFECTIVE date, in
yellow, indicates the current date preceeds the date the FliteCharts database becomes effective. The EXPIRES
date, in yellow, is the revision date for the next database cycle. The DISABLES date, in yellow, is the date that
this database cycle is no longer viewable. NOT AVAILABLE in cyan, indicate the FliteCharts database is not
available on the database card or no database card is inserted.

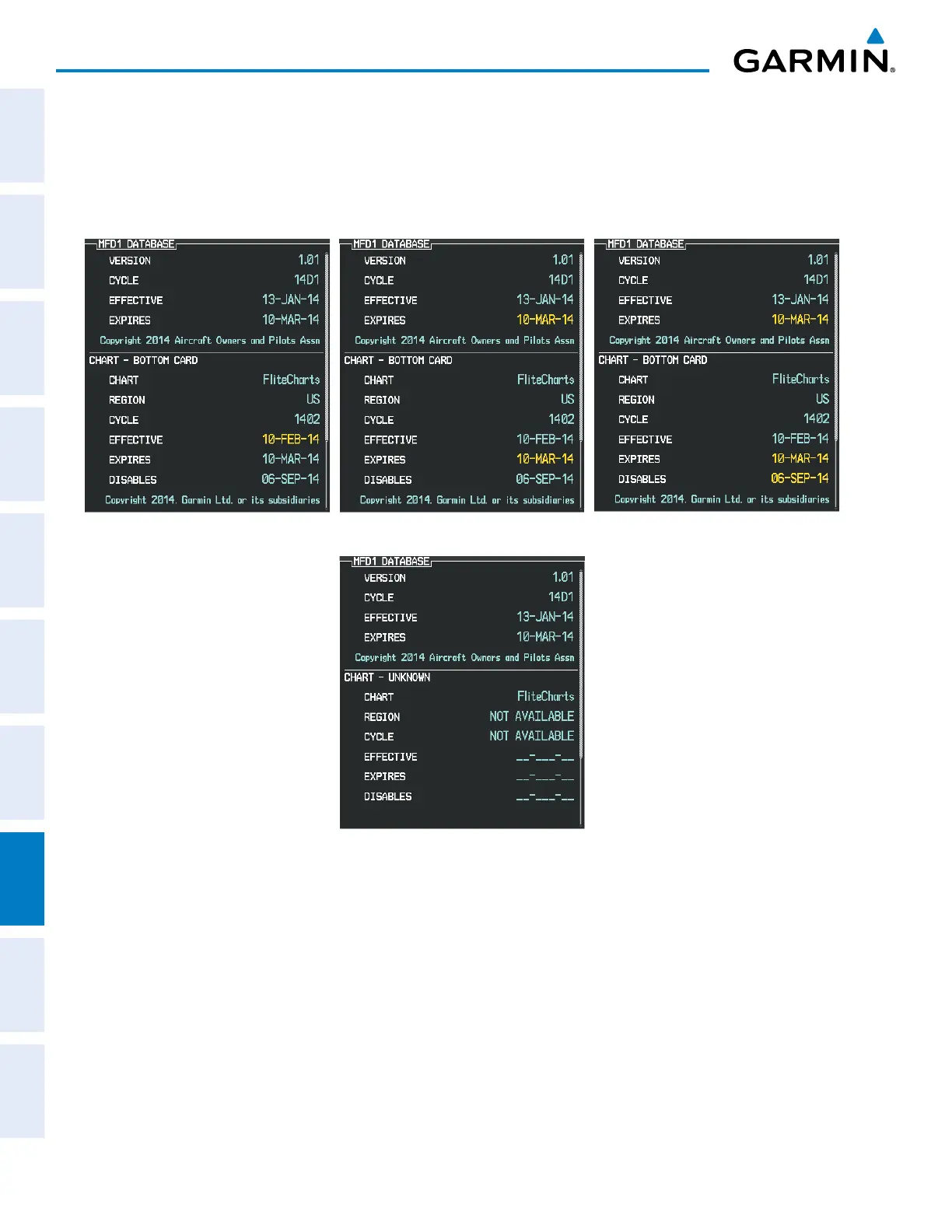

Figure 8-71 AUX – System Status Page, FliteCharts Datbase Status
FliteCharts Expired, but is not Disabled FliteCharts Database is Disabled
FliteCharts Database is Not Available
Current Date is Before Effective Date
