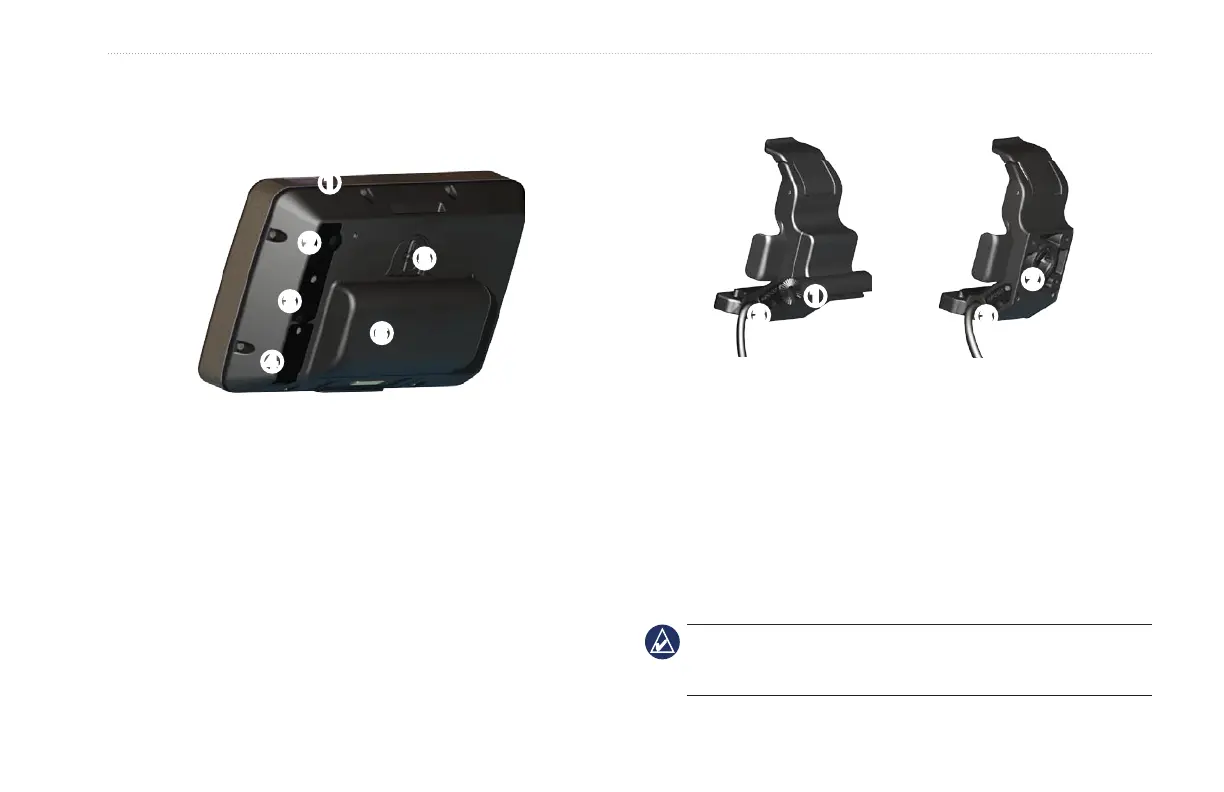

Identifying the GPSMAP 620 Features
➍
➊
➋
➌
➎
➏
➊
Power button—manually turn the device on or off.
➋
DC in—power the device and recharge the battery with an
external power cable.
➌
MCX connector—connect an external GPS antenna.
➍
USB connector—connect the device to a computer.
➎
Battery locking ring—lift and rotate counter-clockwise to
release the battery.
➏
Battery—removable lithium-ion rechargeable battery.
Identifying the GPSMAP 620 Mounting
Bracket Features
➊
➌
Marine
Mounting Bracket
➋
➌
Automotive
Mounting Bracket
➊
Bail-mount adapter—connect the marine mounting bracket to
the marine bail mount.
➋ Ball-socket adapter—connect the mounting bracket adapter to
a compatible automotive dash mount (The automotive kit is an
optional accessory for the GPSMAP 620).
➌
Audio line out—connect the unit to an audio output source
with a standard
1
/
8
in. (3.5 mm) stereo audio plug.
NOTE: When you remove the GPSMAP 620 from the marine
mounting bracket, dry the metal contacts and use the attached
weather cap to prevent corrosion.
