Replacing the Hard Disk Drive
DISCLAIMER: The notebook sample in the following images shows an FFC. The actual
model includes an FPC as pictured in the image on the right.

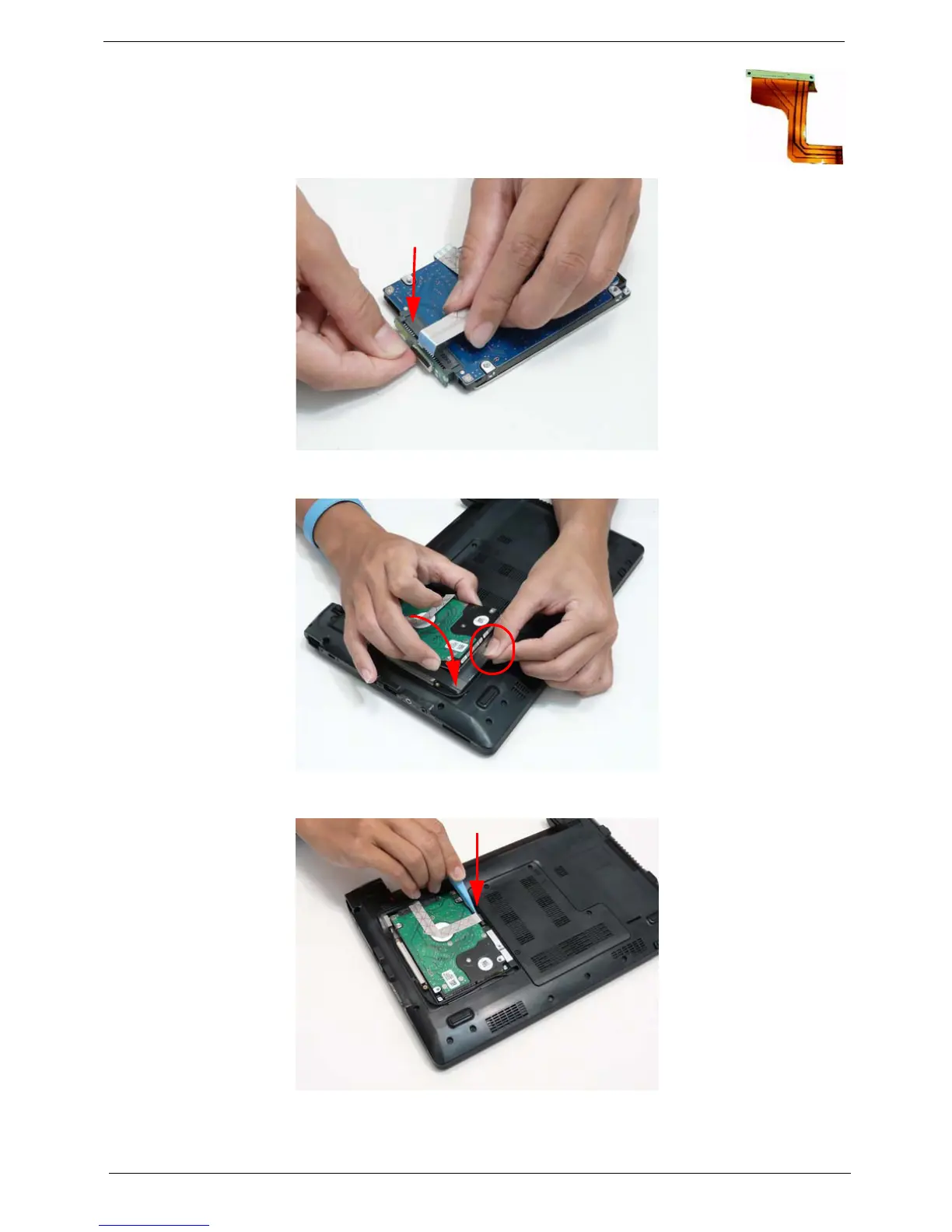

1. Connect the HDD FPC to the HDD.
2. Lift up the clear plastic tab and place the HDD into its bay.
3. Connect the HDD FPC to the main board.
NOTE: The cable pictured in the above images may differ from the actual sample.
