84 Chapter 3
LCD Reassembly Procedure
NOTE: Adhesive is required to be added at various steps to cables and components. Locations of adhesive to
be added is designated with a:
NOTE: During manufacture a cyanoacrylate glue is used provided by Holdtite Adhesives LTD. This is not a
specified requirement. The reassembler is free to select an alternative appropriate adhesive.

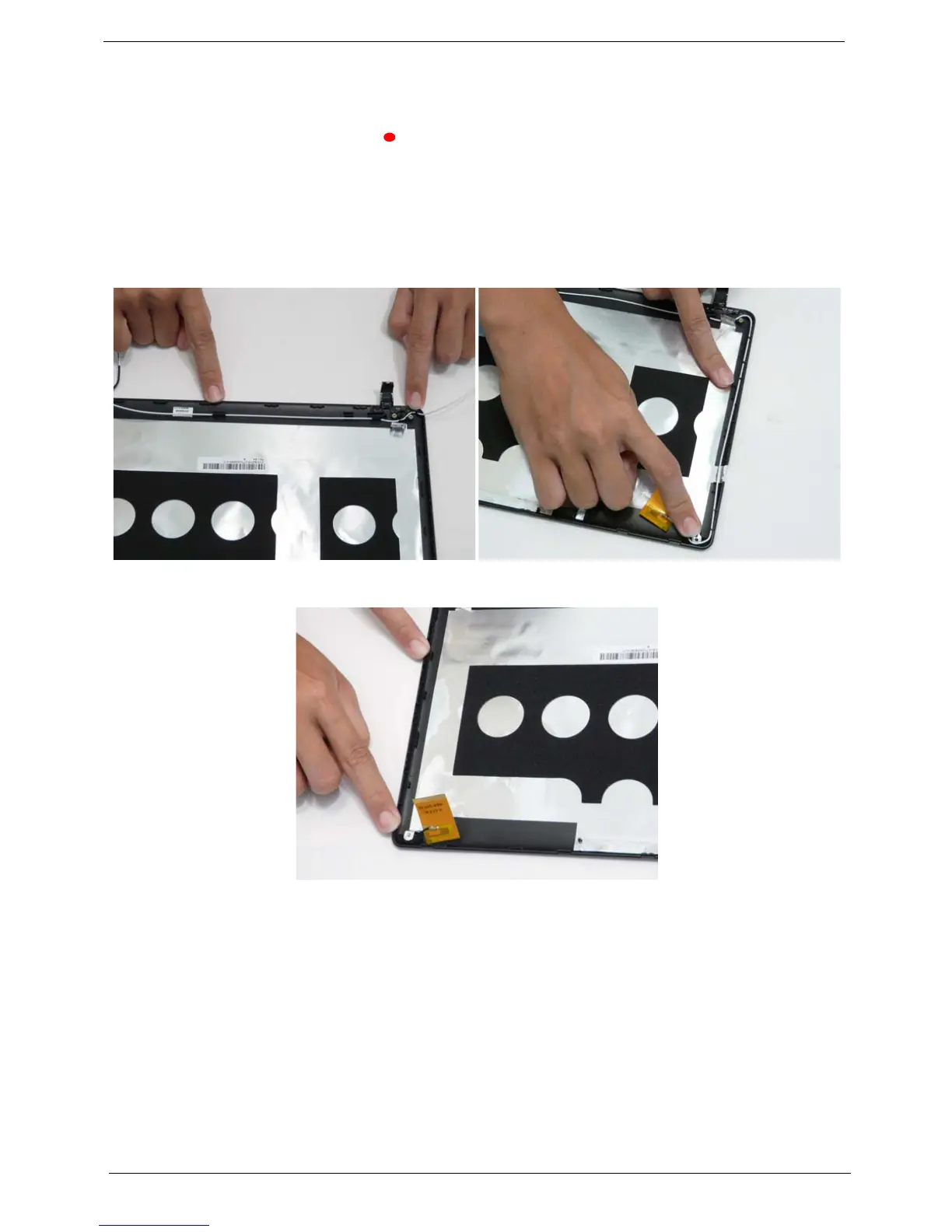

Replacing the Antennas
1. Relay the cables around the module edge for the left antenna.
2. Relay the cables around the module edge for the right antenna.
