138 Chapter 5

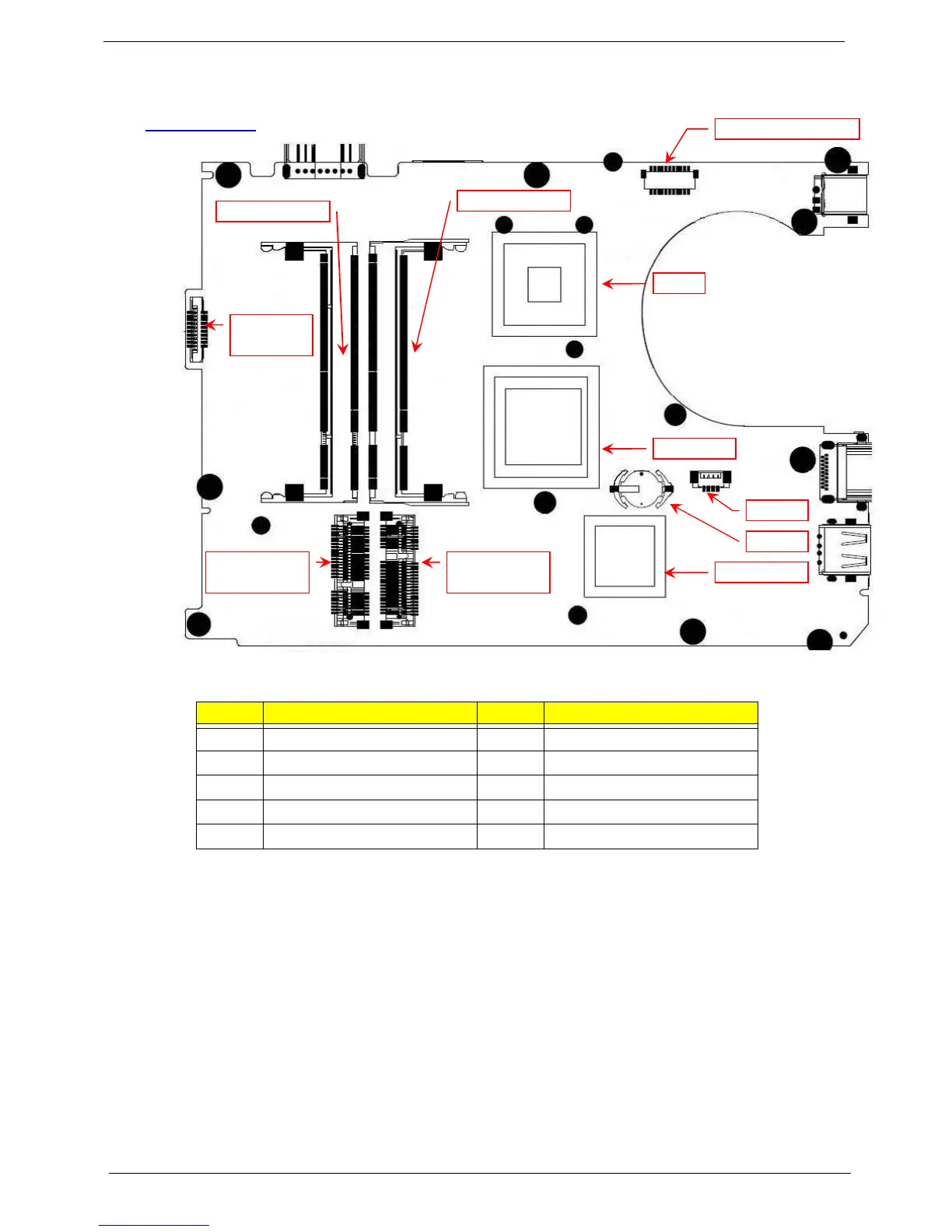

Mainboard Bottom View
Item Description Item Description
CN10 DDR2 DIMM2 CN14 RTC
CN12 DDR2 DIMM1 U19 SB ICH9M
U18 CPU CN13 Mini Card
U17 NB GS45 CN11 Mini Card (WLAN)
CN16 Fan CN9 HDD
BOTTOM SIDE
CN15: CRT board connector
U18: CPU
U17: NB GS45
U19: SB ICH9M
CN14: RTC
CN16: FAN
CN13: Mini Card
For 3G card
CN11: Mini Card
For WLAN
CN12: DDR2 DIMM1
CN10: DDR2 DIMM2
CN9: HDD
connector
