Chapter 1 7

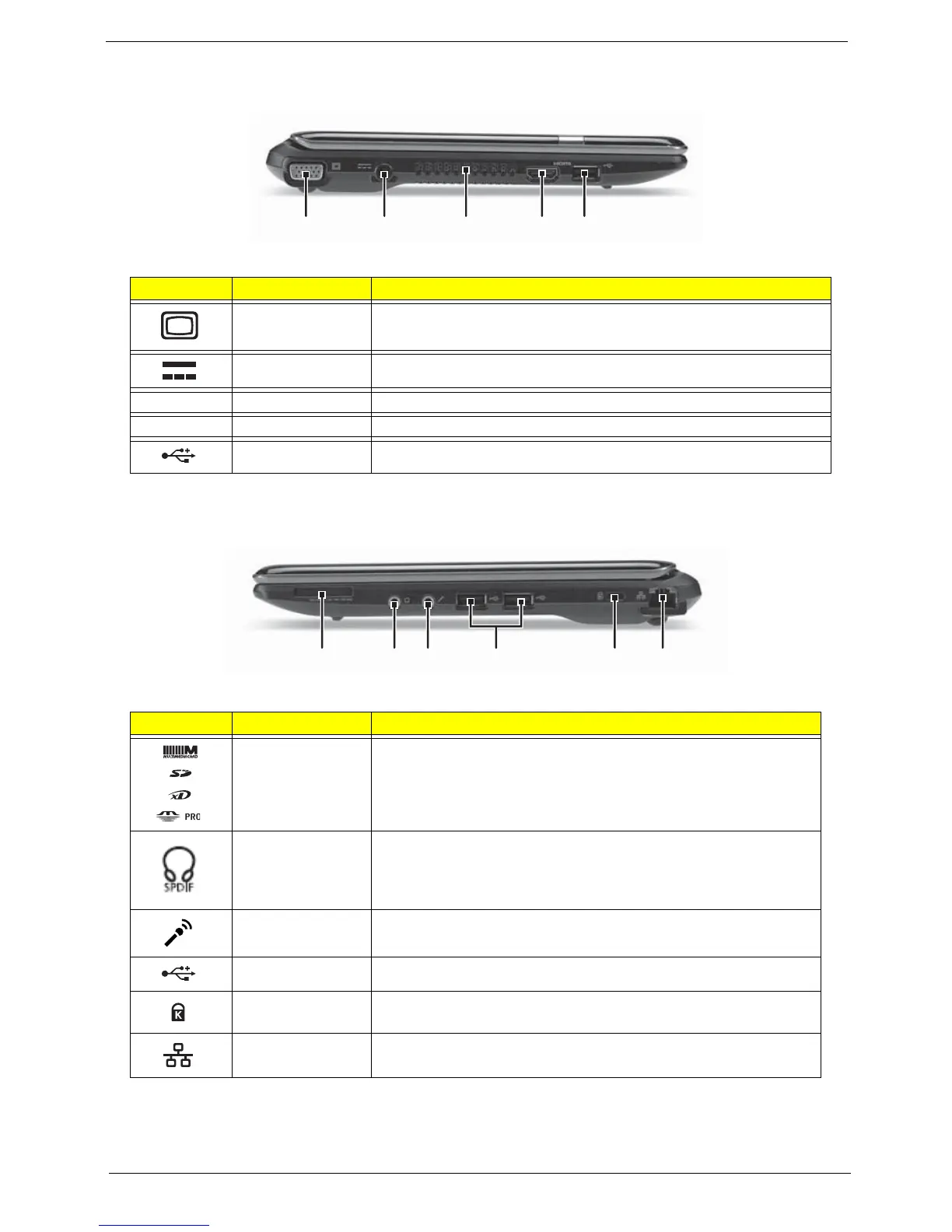

Left View
Right View
Icon Item Description
External display
(VGA) port
Connects to a display device (e.g. external, LCD monitor, LCD
projector).
DC-in jack Connects to an AC adapter.
Ventilation slots Enable the computer to stay cool, even after prolonged use.
HDMI HDMI port Supports high definition digital video connections.
USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse, USB camera).
Icon Item Description
Multi-in-one card
reader
Accepts Secure Digital (SD), MultiMediaCard(MMC), Memory
Stick(MS), Memory Stick PRO (MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card. ONly one card can operate
at any given time.
Headphones/
speaker/line-out
jack with S/PDIF
support.
Connects to audio line-out devices (e.g., speakers, headphones).
Microphone-in
jack
Accepts inputs from external microphones.
USB 2.0 port Connects to USB 2.0 devices (e.g. USB mouse).
Kensington lock
slot
Connects to a Kensington-compatible computer security lock.
Ethernet RJ-45)
port
Connects to an Ethernet 10/100/1000-based network.
USB
port
Power
connector
Monitor
port
Ventilation
fan
HDMI out
jack
USB port
Memory card
reader
Ethernet
jack
Kensington
lock slot
Headphone
jack
Microphone
jack
