Chapter 3 59

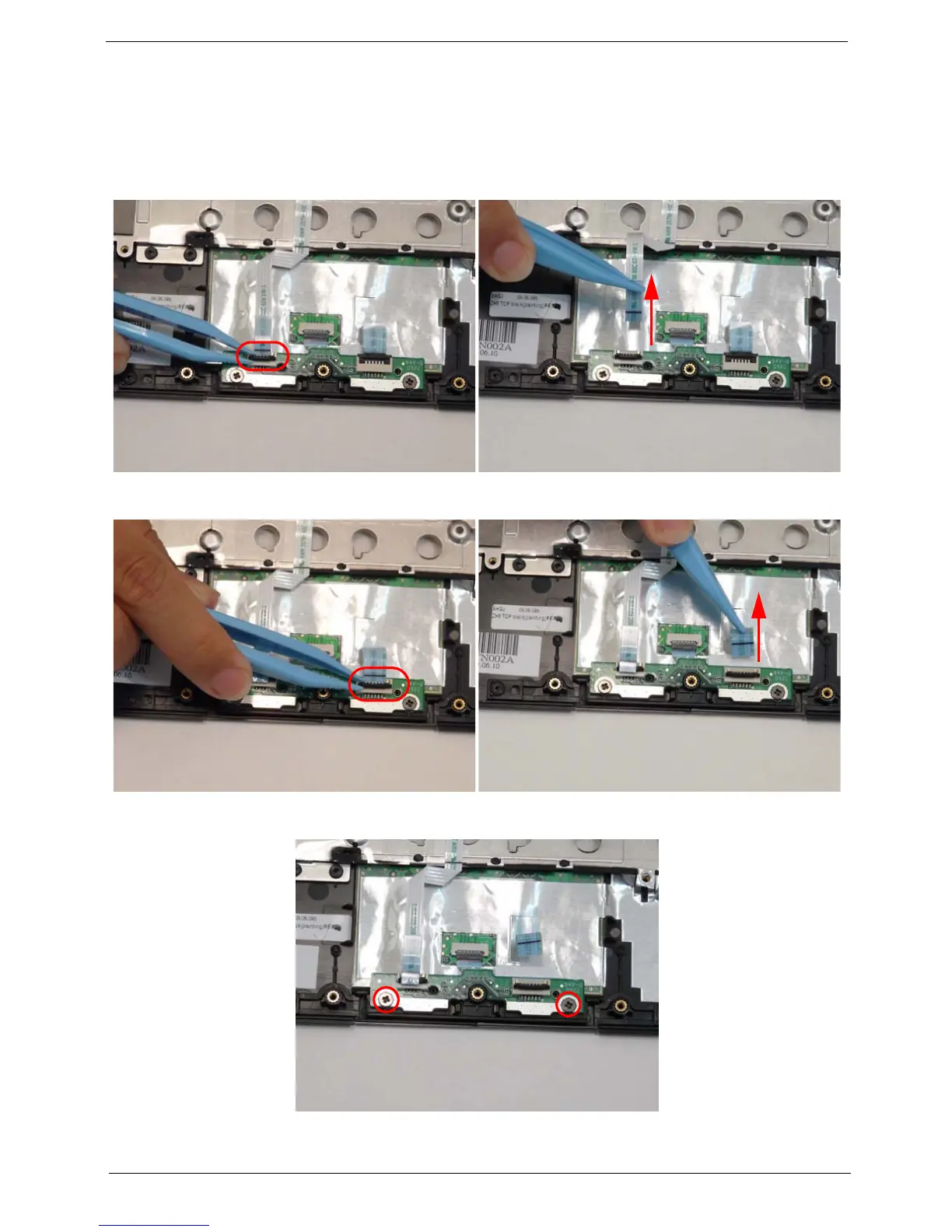

Removing the Button Board
IMPORTANT: The Touchpad Board cannot be removed individually. To replace the Touchpad, replace the entire
Upper Cover.
1. See “Removing the Upper Cover” on page 57.
2. Unlock and remove the touch-pad to mainboard FCC.
3. Unlock and detach the touch-pad to touch-pad FCC.
4. Remove the two screws holding the button board.
To Next Page
