Removing the Mainboard
1. See “Removing the Upper Cover” on page 57.
2. See “Removing the LCD Module” on page 62.
3. See “Removing the LED Board” on page 64.
4. See “Removing the Bluetooth Module” on page 66.
5. See “Removing the I/O Board” on page 67.

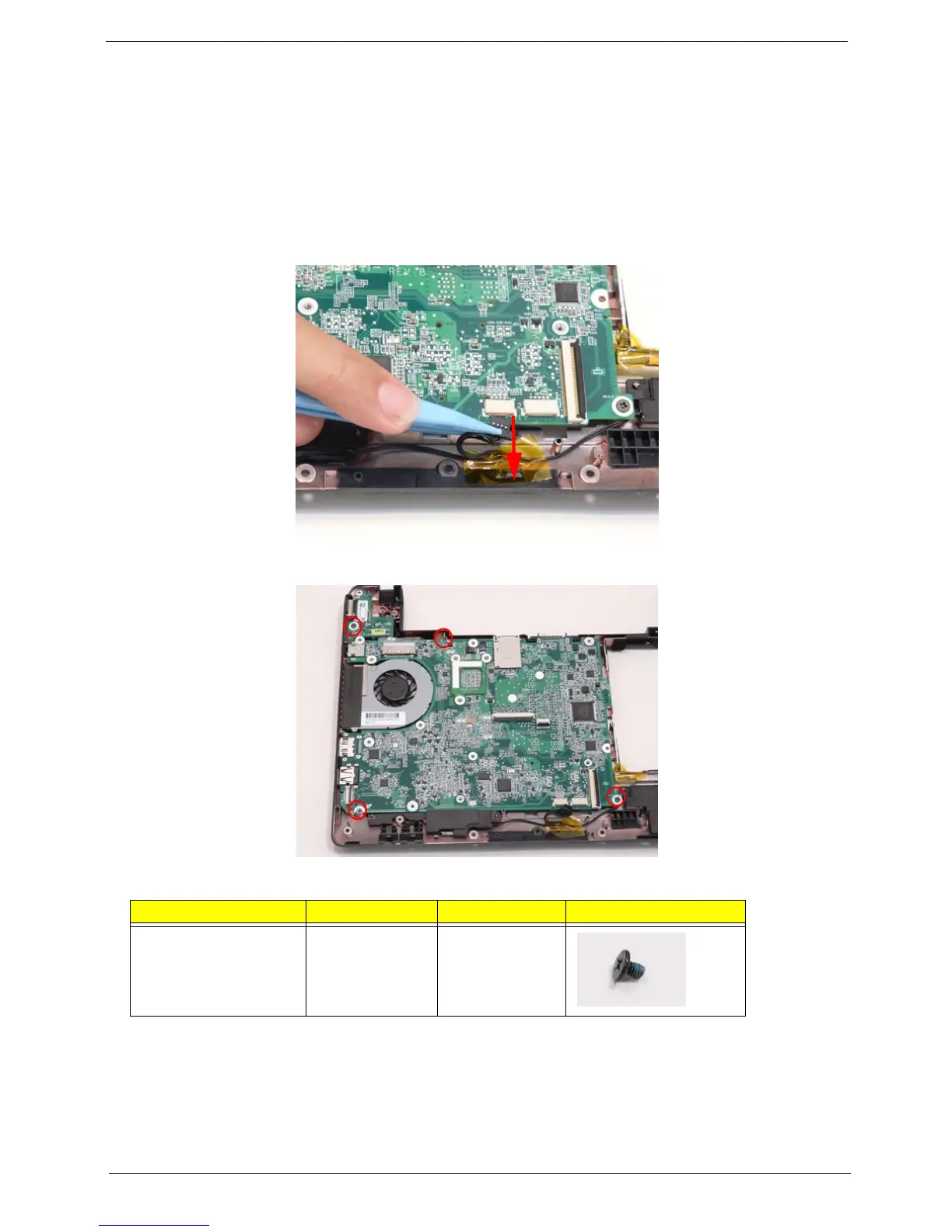

6. Disconnect the speaker cable from the mainboard.
7. Remove the four screws of the main board and the CRT board.
Screw List
Step Screw Quantity Screw Type.
Main Board
Disassembly
2*3 4
To Next Page
