Jumper and Connector Locations
Mainboard Top View
Item Description Item Description
PJ1 DC-in CN6 Bluetooth Connector
CN3 LCD connector U9 Clock Generator
JSIM2 SIM card connector CN2 LED board connector
PJ2 Battery connector CN17 USB connector
U12 EC Winbond CN18 HDMI
U14 Codec U2 HDMI level shift
CN8 Card reader board connector CN4 Keyboard connector
CN7 Speaker Connector CN5 Touch Pad connector

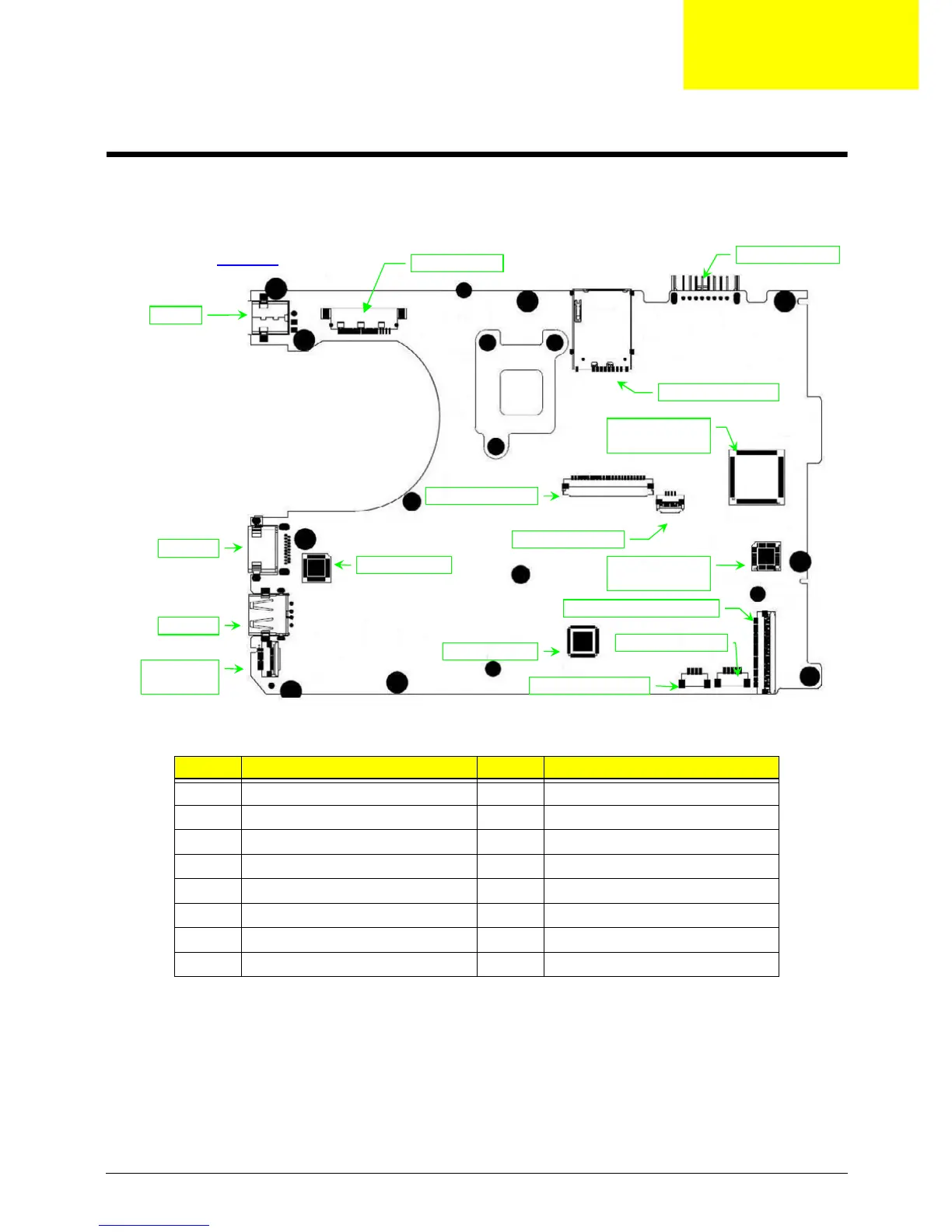

CN3: LCD connector
TOP SIDE
PJ1: DC-in
CN18: HDMI
CN17: USB
CN2: LED board
connector
CN4: Keyboard connector
U9: Clock Generator
CN5: Touch Pad connector
JSIM2: SIM card connector
PJ2: Battery connector
U12: EC Winbond
WPCE775LA0DG
U14: Codec
Realtek ALC269X
CN8: Card Reader board Connector
CN7: Speaker Connector
CN6: Bule Tooth Connector
U2: HDMI level shift
