Chapter 3 47

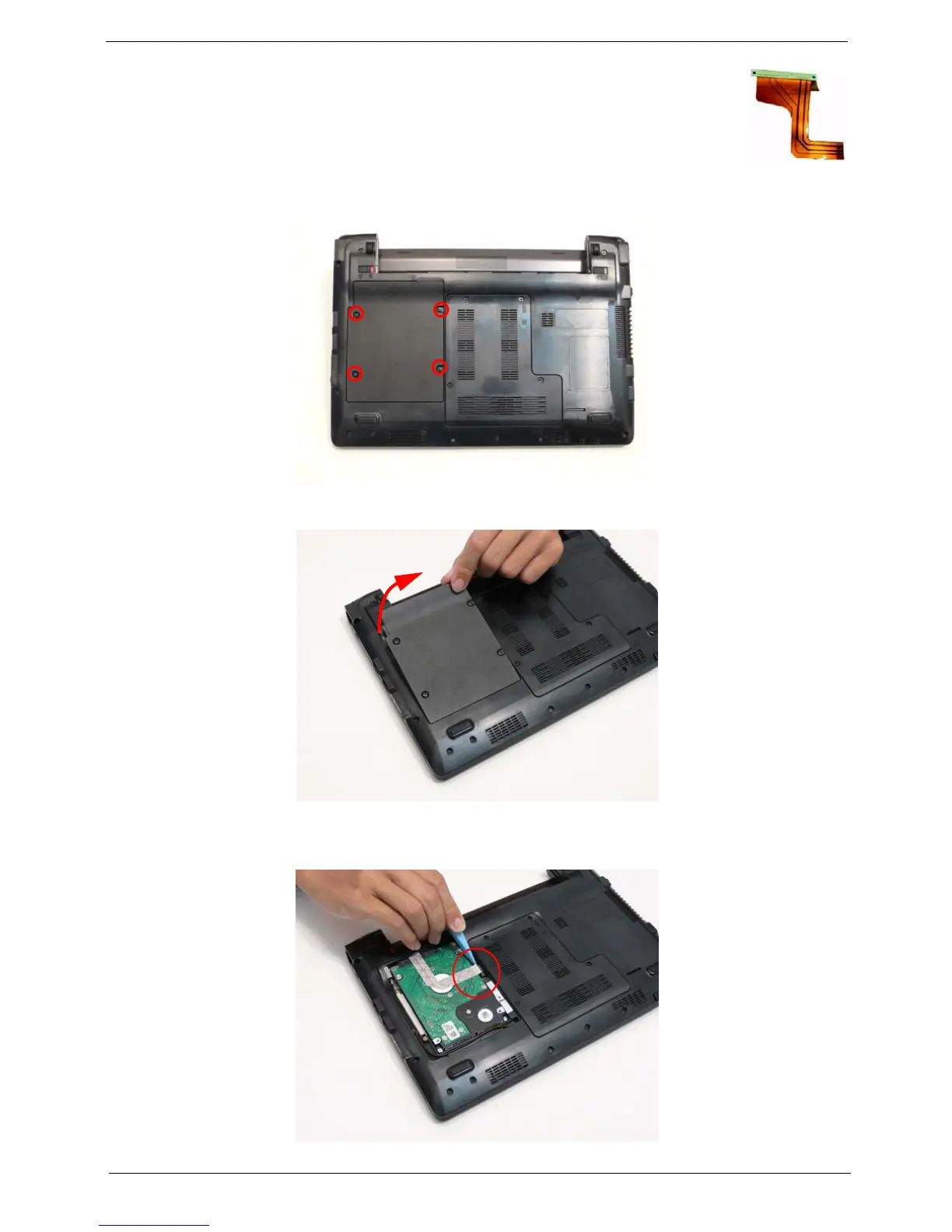

Removing the Hard Disk Drive Module
DISCLAIMER: The notebook sample in the following images shows an FFC. The actual
model includes an FPC as pictured in the image on the right.
1. See “Removing the Battery Pack” on page 45.
2. Loosen the four captive screws.
3. Lift the HDD cover up and away by the corner.
4. Grasp the FPC cable and lift to remove.
NOTE: The cable pictured in the following images may differ from the actual sample.
