Instructions for DKC500ACL/DKC800ACL
www.gatexpertstore.com

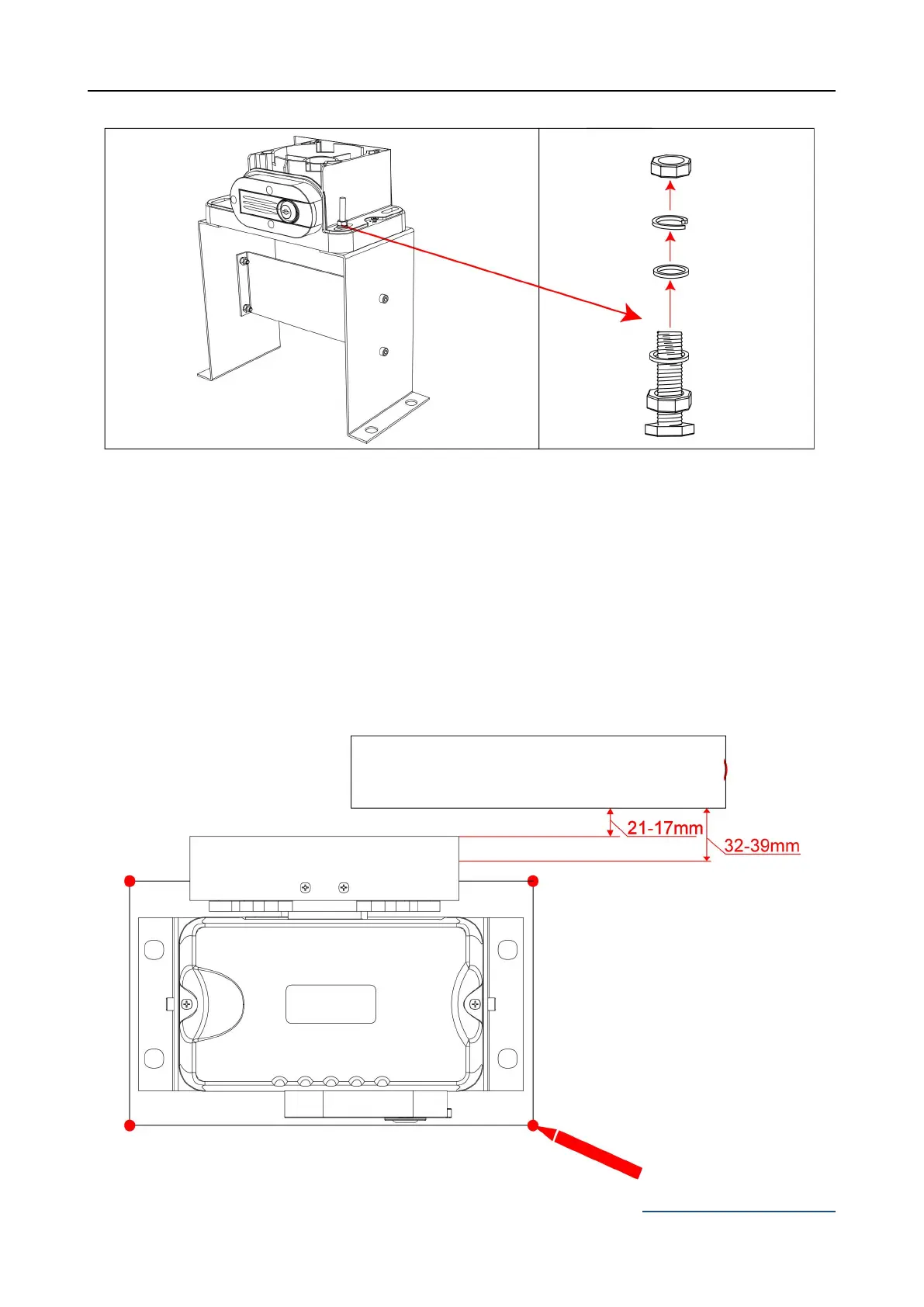

Figure 11
Fitting Motor
· Fit motor and mounting base on the concrete footing.
· Ensure the motor output sprocket and chain are correctly aligned. Sprocket and chain should
be centered as much as possible.
· Take the motor away from mounting base.
· Leave a space of 30cm from the motor to end of the chain.
Sliding Gate Frame (in open position)
Use pencil, chalk or similar tools to
mark at the corners of mounting
plate
To Next Page
