GATEXPERT DKC500ACL - Wiring to the Terminal

Instructions for DKC500ACL/DKC800ACL
www.gatexpertstore.com
25

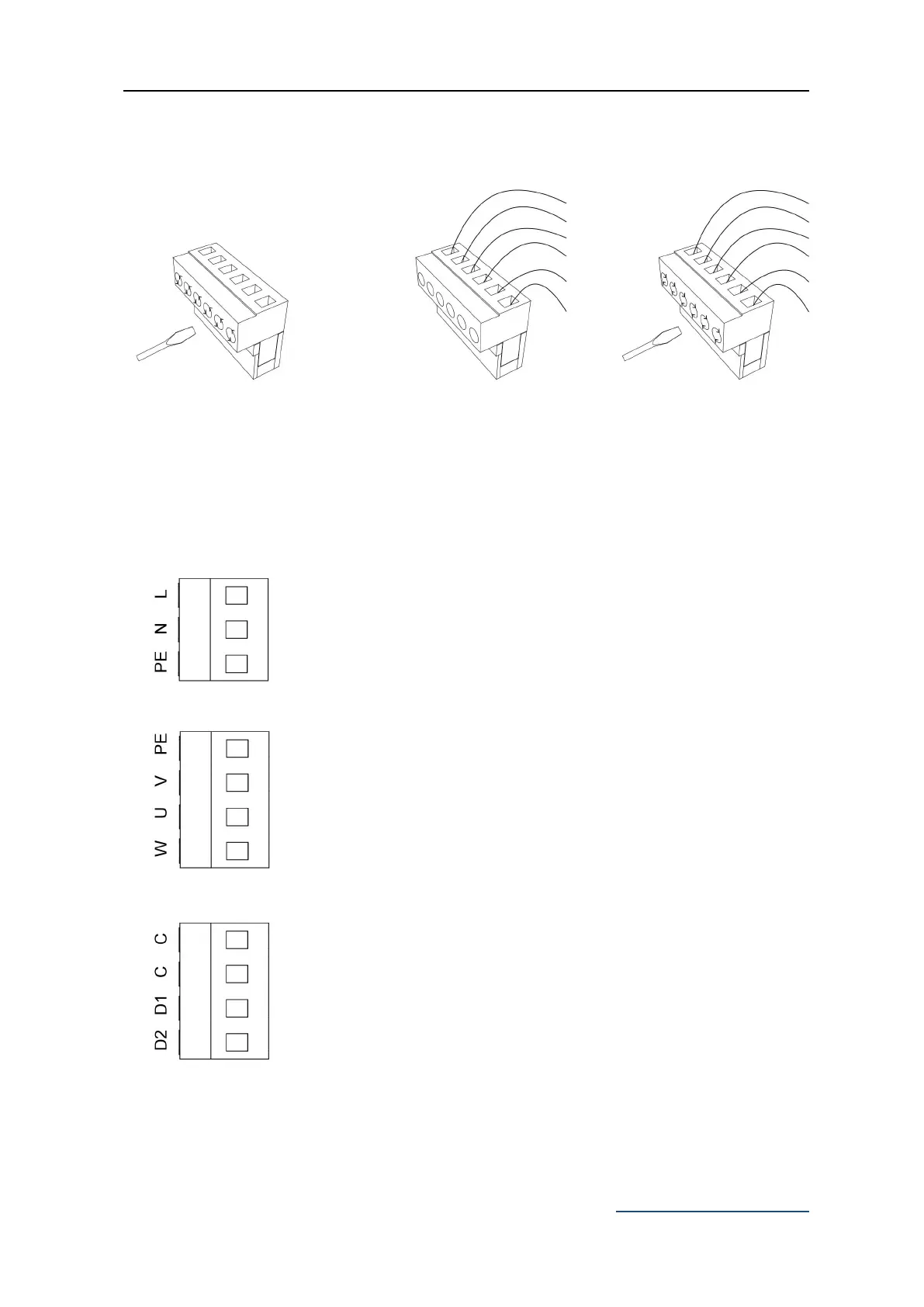

Insert the wire into the number
on the terminal that you are
looking to connect to.
Refer to pages 22.
Tighten with a
screwdriver to secure
the wire in place.
X1 Terminal:
L: Live Wire (brown wire).
N: Neural Wire (blue wire).
PE: Grounding Wire (yellow/green wire).
X2 Terminal:
PE: Earth
V: Common Terminal of Motor.
U: Motor Terminal. Switch SW1 will change gate moving
direction.
W: Motor Terminal. Switch SW1 will change gate moving
direction.
Note: If require to change the moving direction, not
only the the switch SW1 need to be adjusted, but also
CLLM and OPLM on X5 Terminal have to be swapped
with each other.
X3 Terminal:
C C: Motor Capacitor
D1 D2: Connection for warning lamp(AC220V).
Wiring to the Terminal
Using a screwdriver to
loosen the screw on the
side of the terminal.
