Instructions for DKC500ACL/DKC800ACL
www.gatexpertstore.com
Please Note: the rubber grommet must be fitted back onto the motor cover once the
cover has been re-fitted/replaced onto the base of the motor.
Step 4 - Motor Pad Footing
· The motor pad concrete footing requires an area of no less than 500mm long x 350mm wide
and a minimum depth of 200mm (Standard requirement).
· Ensure surface is level and parallel to the driveway.

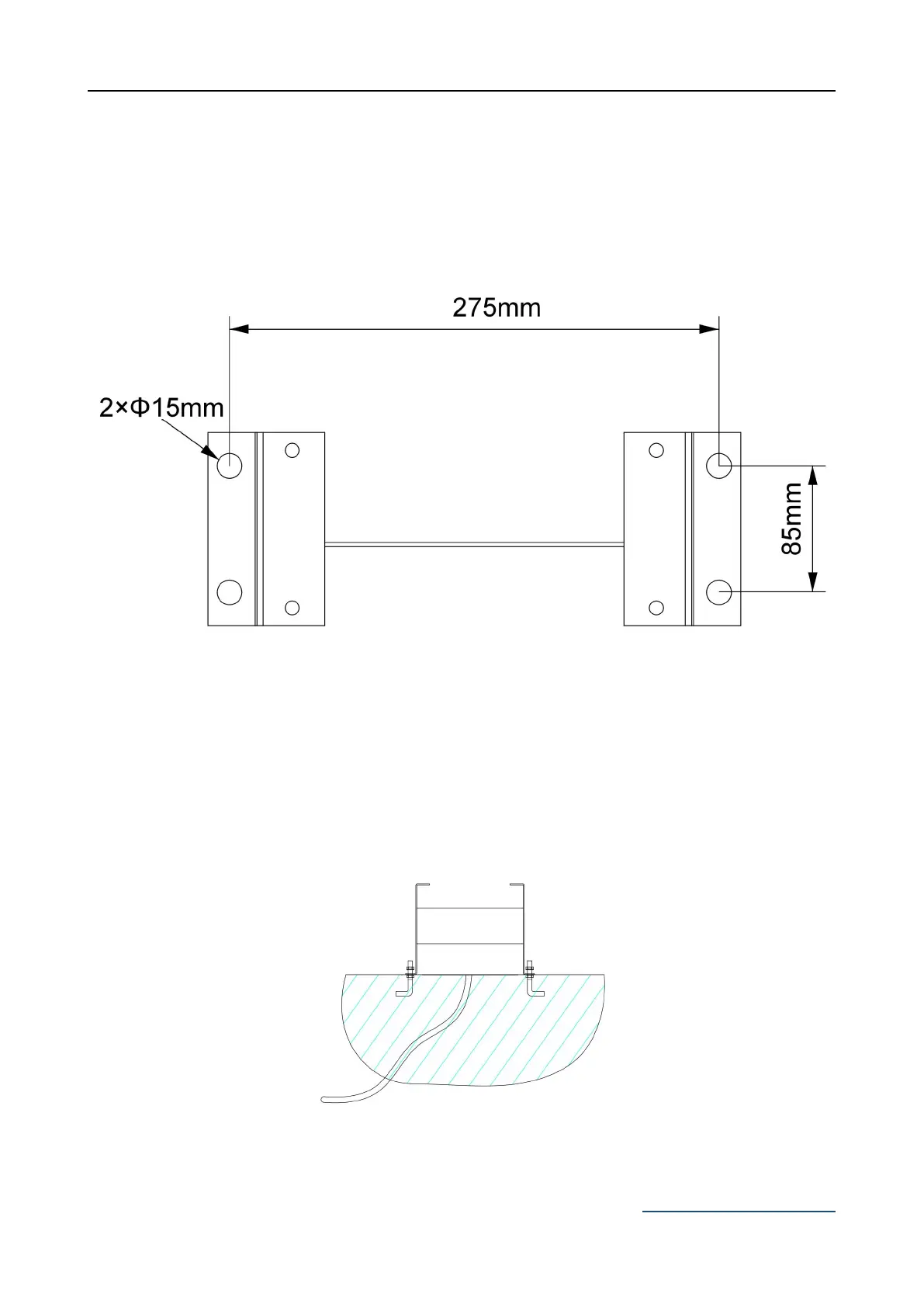

Mounting Base Dimensions
Figure 9
Step 5 - Fitting Mounting Base and Motor
· Fit anchor bolts(included in kit) or expansion bolts(should be prepared by users) according to
holes in mounting base (as per Figure 9).
· Position the mounting base and fix it as per Figure 10.
· Bolt motor to its base using the M8x40 bolts with spring and flat washers provided and tighten
as required.
Figure 10
