GATEXPERT DKC500ACL - Terminal Instructions

Instructions for DKC500ACL/DKC800ACL
www.gatexpertstore.com
18
Terminal Instructions
All changes to these settings below must be completed by licensed electrician.
Note: If require to change the moving direction, the wires of 11 and 13 on J5 Terminal
have to be swapped with each other.

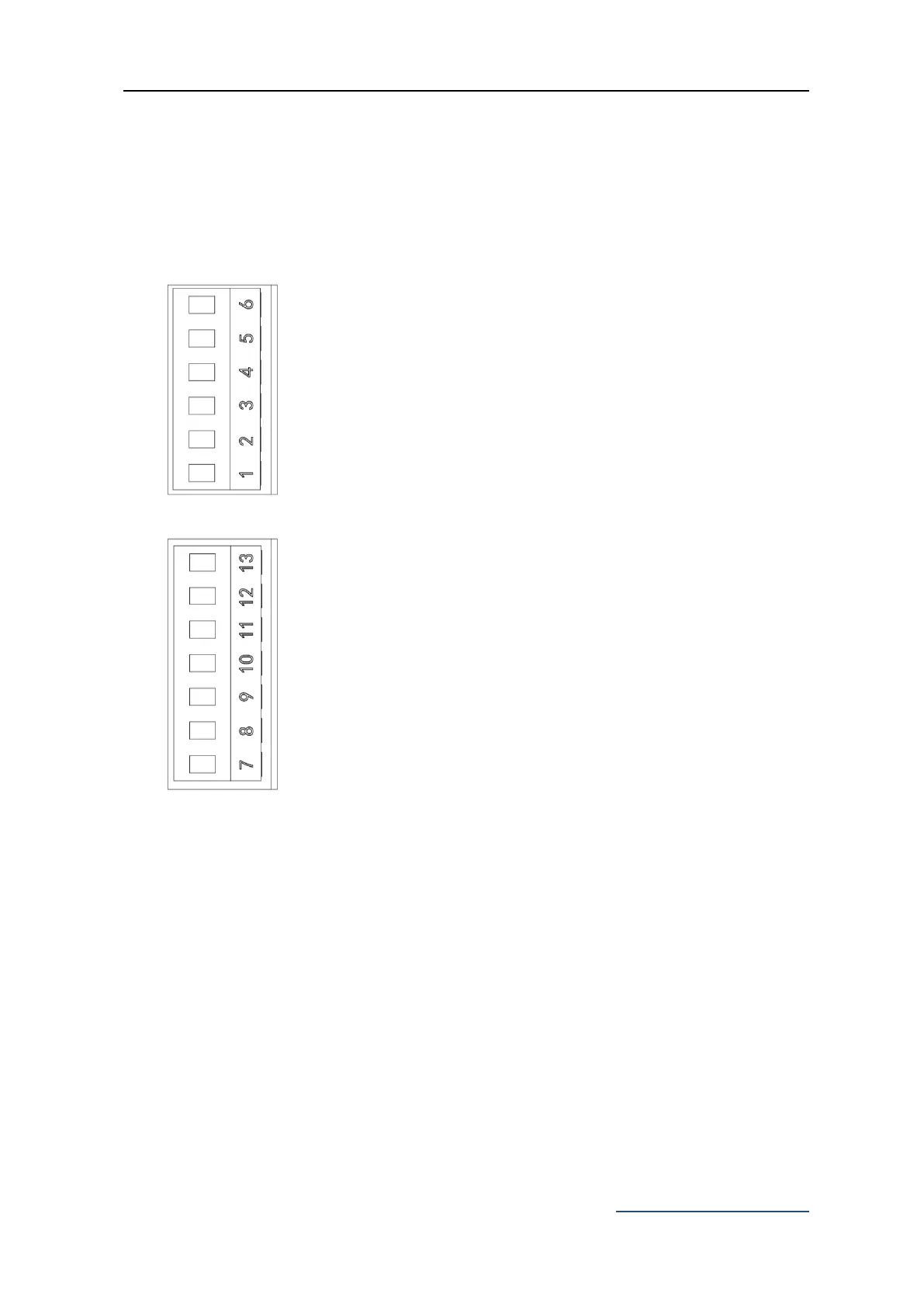

J2 Terminal (as per Figure 16):
Terminal 6: External Push Button Pedestrian Switch
Terminal 5: External Open/Stop/Close/Stop Loop Control Push
Button (Repeated Open/Stop/Close)
Terminal 4: Common Terminal for All External Control Push
Button
Terminal 3: External Stop Push Button Switch.
Terminal 2: External Open Push Button Switch.
Terminal 1: External Close Push Button Switch.
J5 Terminal: Limit Switch and Accessories
Additional accessories sold separately
Terminal 13: Open Limit Switch
Terminal 12: Limit Switch Common Terminal
Terminal 11: Close Limit Switch
Terminal 10: Loop Detector Connector (Pre-wired by Factory)
Terminal 9: Ground/Earth (GND)
Terminal 8: Photocell input (N.C.). If no photocell is fitted, use
a jumper between terminals 8 & 9.
Terminal 7: Power supply for accessories (+15V)
