3-4 Troubleshooting

4 Open (lift) the Input Guide Roller assembly, the Document Transport

Ball Track assembly and the Sheet Eject Strap assembly, as shown in

Figure 3-2 and clear any paper that may be jammed in that area.

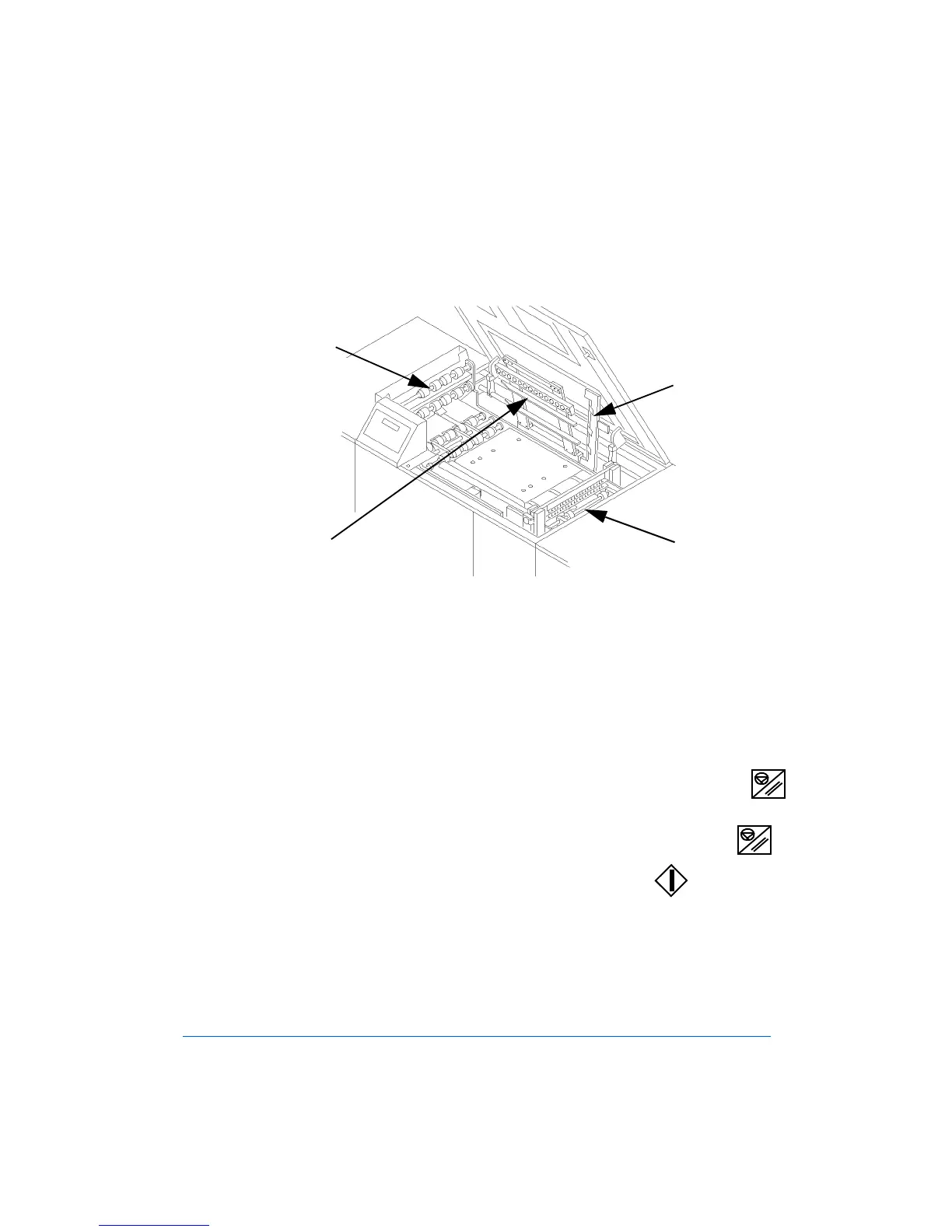

Figure 3-2: The Internal Paper Path Components

5 Remove the Output Guide Roller assembly, as shown in Figure 3-2 and

clear any paper that may be jammed in that area.

6 Reinstall the Output Guide Roller assembly and ensure that all

assemblies are locked down. Then, close the Top Covers.

7 Open the Bypass Stacker Top Cover and clear any paper that might be

jammed in that area.

8 If the FusionPunch II is set up in Cycle Up mode, press the S to p /R e se t

button and the job will restart automatically.

9 If the FusionPunch II is set up in Online mode, press the Sto p / R ese t

button to clear the error message and then press Start .

Input Guide

Roller

Document

Transport Ball

Track

Sheet Eject

Strap

Output Guide

Roller
