4-8 Maintenance
Cleaning the Stacker
1
Open the Stacker Top Cover, as shown in Figure 4-4.
2 Clean the two orange O-rings on the Roller Assembly, as shown in
Figure 4-4, using only 90% Isopropyl alcohol and a clean lint-free
cloth.
3 Clean the large O-rings that transfer the drive to the rollers, using only
90% Isopropyl alcohol and a clean, lint-free cloth.

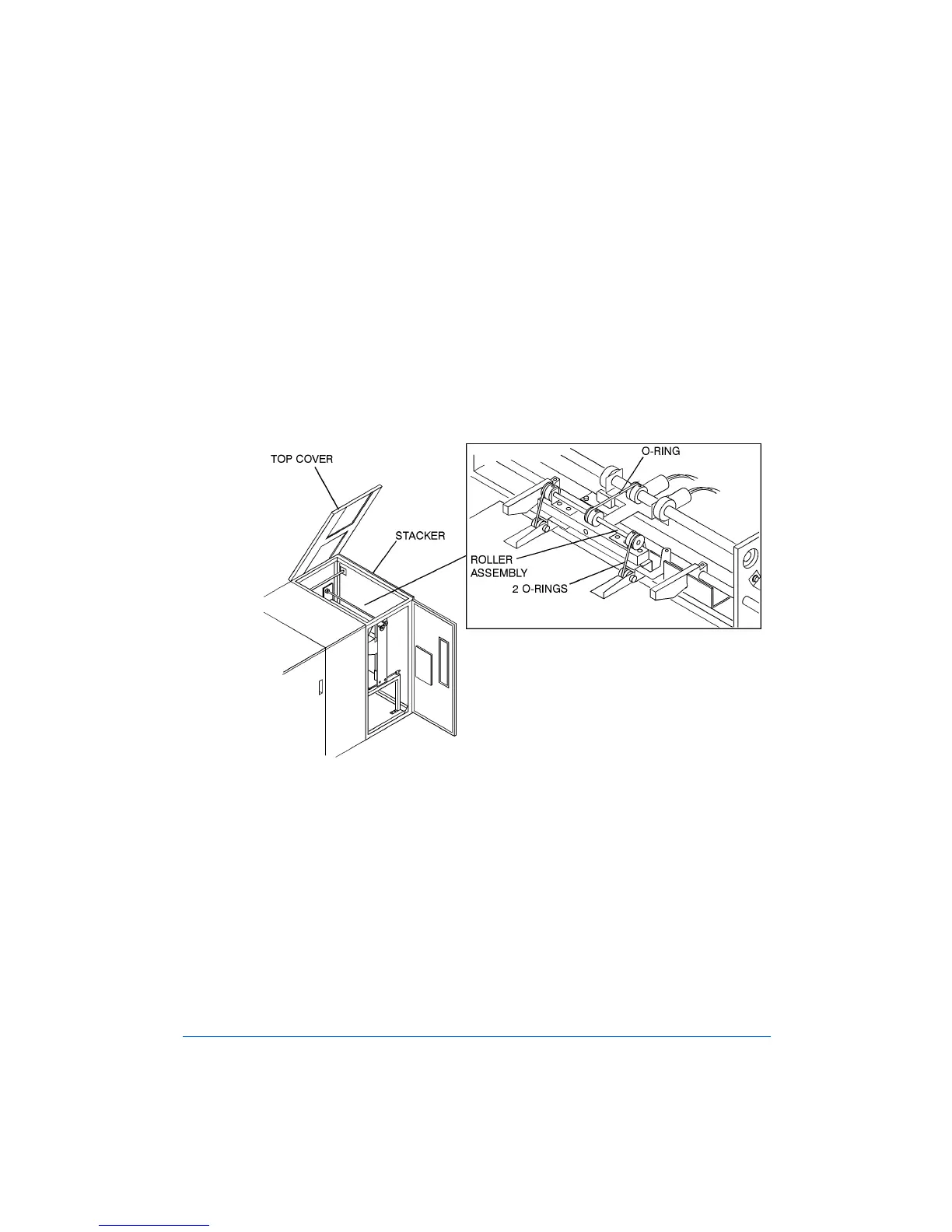

Figure 4-4: Cleaning the Stacker
