GCC Technologies EXPERT 24 - Page 11

Expert 24 User Manual
Installation
2-4
Step 5

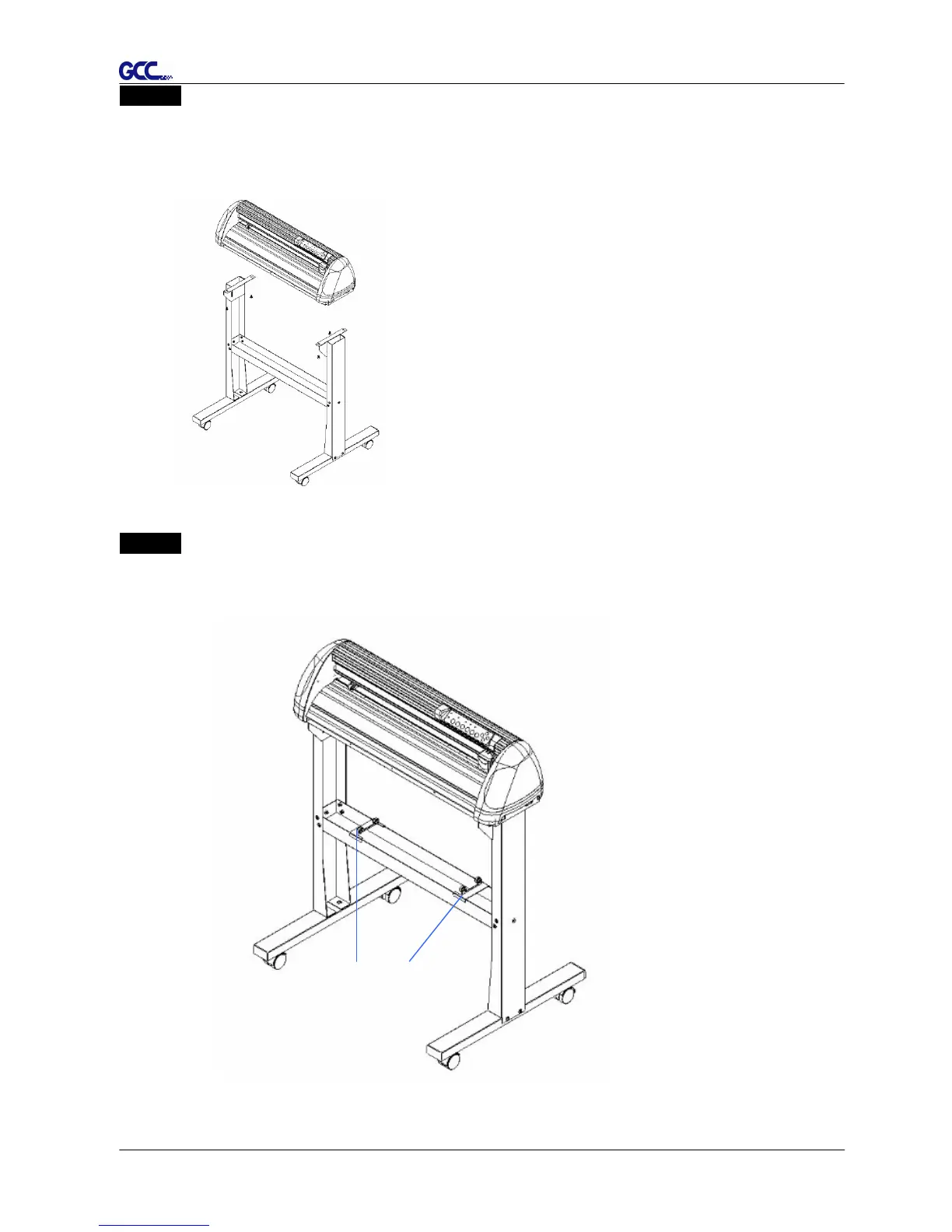

Remove the cutting plotter from the carton. Position the stand under the plotter, and insert the
screws into the holes on the bottom of the plotter but do not tighten them up as shown in
Figure 2-4.
Step 6
Tighten the screws of step 3 and step 5. Place the sliding brackets for paper takeup onto the
stand beam.
Figure 2-4
Figure 2-5
sliding brackets for paper takeup
