2.4 Media Loading

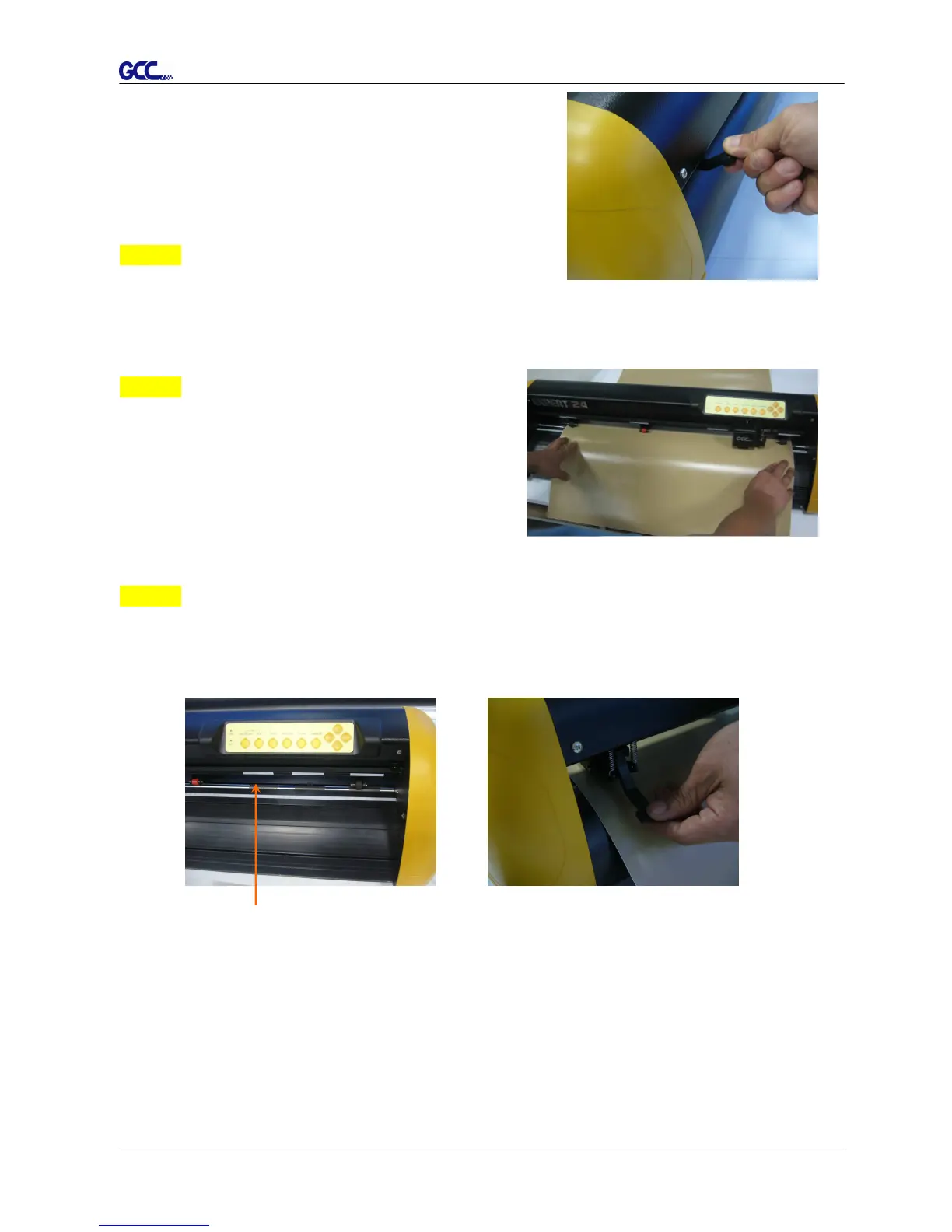

2.4.1 Loading the Sheet Media
To load the media properly, please follow the below
procedures:
Step 1
Lift the 2 levers at the back side of cutter to raise pinch
rollers ( Figure 2-12 ).
Step 2
Load your media on the platen and slide it under
the pinch rollers from either the front side or the
backside. The alignment rulers on the platen
extension will help you to adjust the media
precisely ( Figure 2-13 ).
Step 3
Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must be
positioned above the grid drum. The white marks on the main beam will remind you where
the grid drums are (Figure 2-14).
White mark
Figure 2-13
