CAUTION! !!
 Make sure the Primary and secondary pinch rollers are set to right positions.
 Position the Primary Pinch Rollers at the right and left sides of media.
 Position the Secondary Pinch Roller at the center of media.

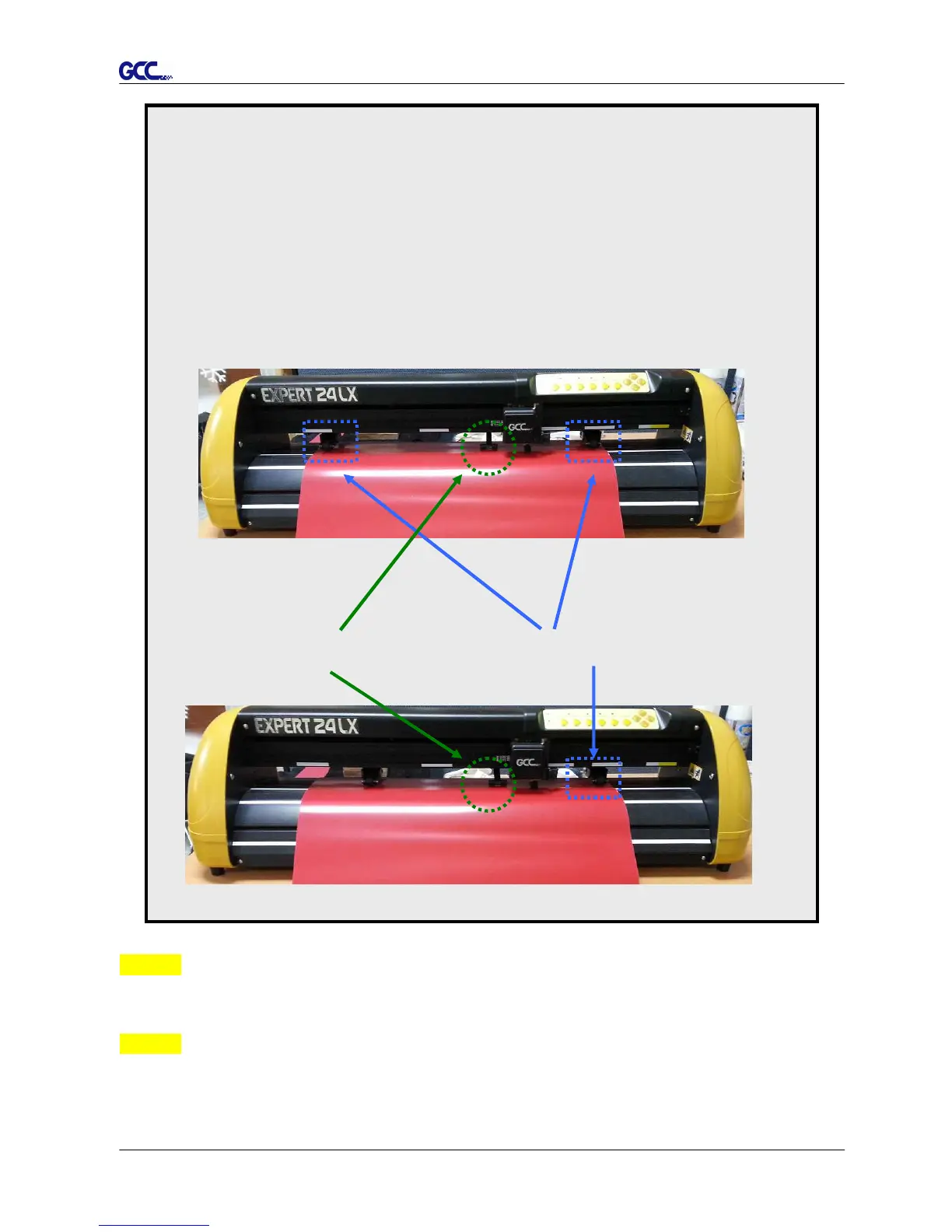

Figure 2-17
Primary Pinch Roller
Secondary Pinch Roller
(X)
Incorrect
(O)
Correct
Figure 2-18
Step 4
Push the lever backward to lower down the pinch rollers (Figure 2-15).
Step 5
After turn on the power, the tool carriage will measure the size of the media automatically. And
the plotting cutter begins to work.
