General Information 1-2

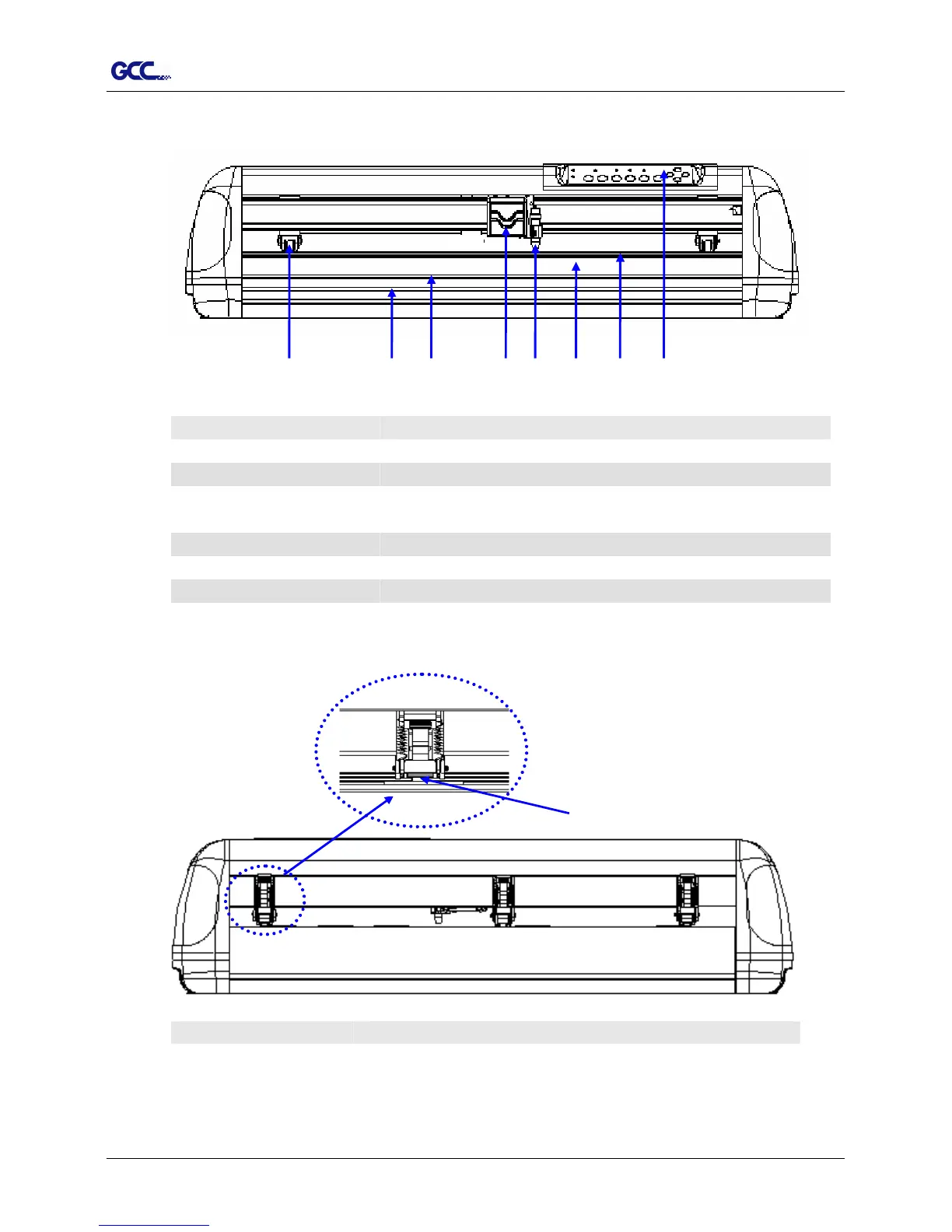

1.3 The Appearance (EX-24)
1.3.1 The Front View
Object Description
A
Primary Pinch Roller To help hold the media during cutting.
B
Slicing Groove To help slice off media.
C
Alignment Ruler To align media with clear guideline marks
D
Tool Carriage To help perform cutting job with installed blade or pen.
E
Blade Holder To hold the blade.
F Platen The surface for holding and supporting media in operation.
G
Cutting Pad To protect blade and plate in operation.
H
Control Panel To consist of 10 control keys and 6 LED lights.
1.3.2 The Back View
Object Description
J Grid Drum To move media back and forth in operation.
J
【
【【
【Figure 1-2】
】】
】
H
【
【【
【Figure 1-1】
】】
】
A
G
F
E
D
C
B
