2.2 Stand
2.2.1 Stand Installation
Please follow the procedures below for assembling the stand and the media support system.
Step 1 Please examine the supplied items in the accessory box of the stand carton
before you install:
Stand is an optional item for Expert 24, Item List：
：：
：
1 Left side vertical stand
1 Right side vertical stand
1 Support for left side
1 Support for right side
1 Stand Beam
2 Bottom Stands with wheels
2 Sliding brackets for paper take up
1 Hex Wrench (M5)Φ4
28 Socket flat head screws(M6*12L)
1 Installation Guide
Step 2

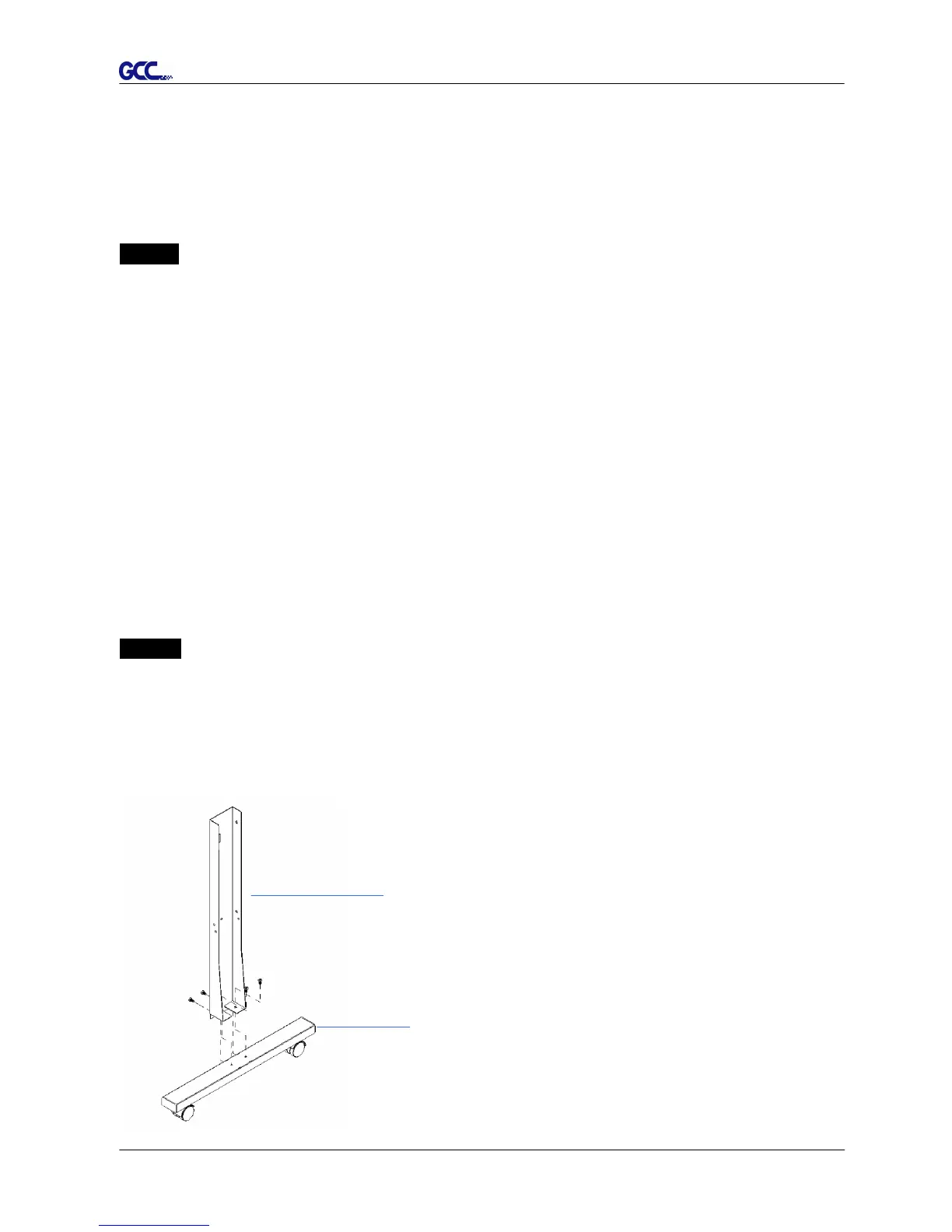

Position the Left side vertical stand perpendicularly to part and put the screws into the
holes and tighten them to form a left side T-stand (Figure 2-1). Repeat the same steps with the
Right side vertical stand.
Figure 2-1
