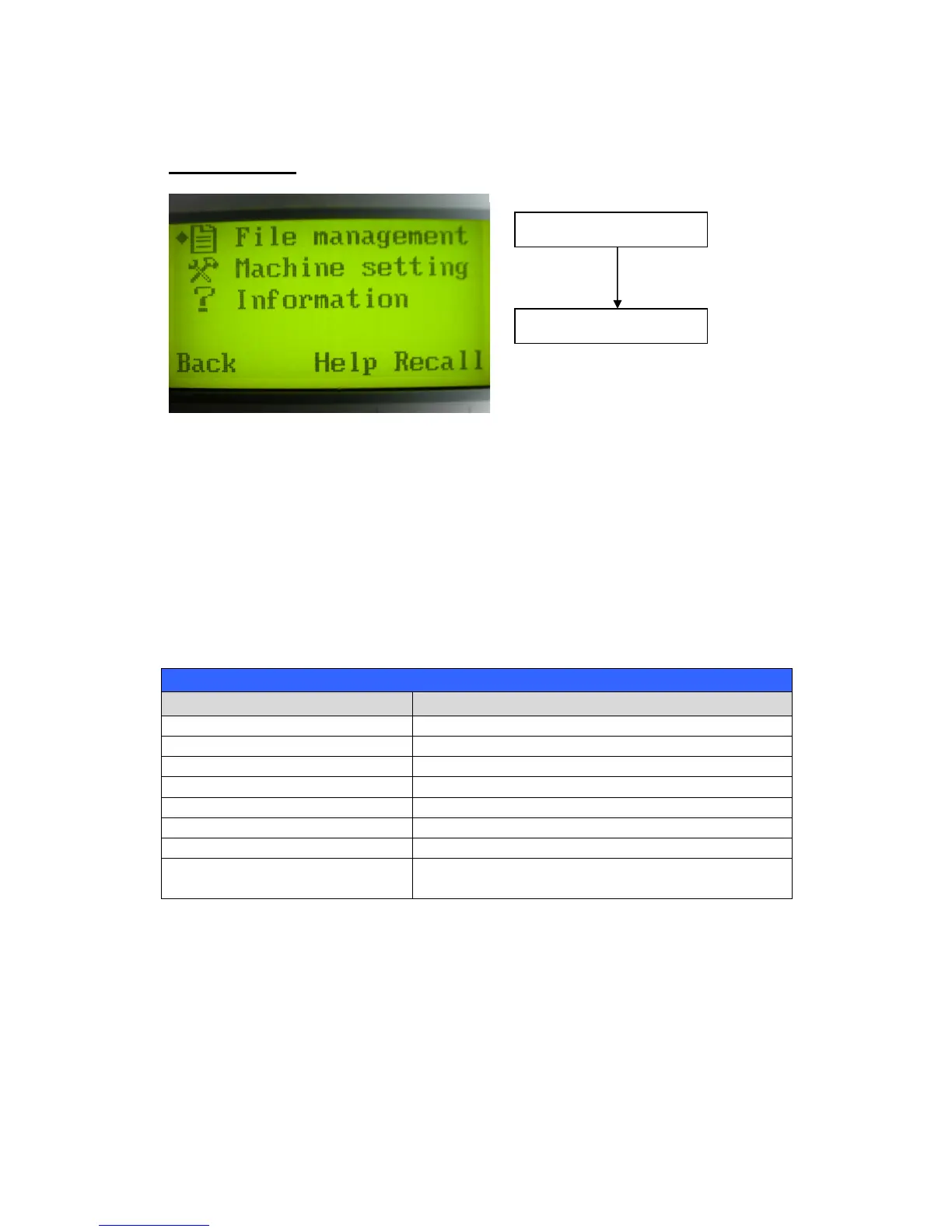

Functions Page
The Functions Page allows you to edit file management and machine settings. From this page,
you will be able to access the File Management, Machine Setting, and Machine Information
pages.
 File Management Page – this page allows you to manage the files that you have loaded onto
the LaserPro X252RX & X380RX.
 Machine Setting Page – this page allows you to access and modify a variety of your machine
settings, including: Set Lens, Tune Auto Focus, Set Table Down, Set Red Beam, Carriage
Lock, Set Command Mode, Save Position, Flash Memory, Set File Save Mode, Set Vector
Mode, Tune Image Power, Set Laser Wattage, Set Fine Mode, Other, Reset.
 Machine Information Page – this page allows you to view information regarding the system
such as the GCC logo, machine name, firmware version, and other information.
Functions Page
Relevant Buttons
Function
F1 (Back) Back to previous page
F3 (Help) Display help
F4 (Recall) Back to previous page



/



Directional
Scroll through the menu selections
Enter Perform the selection
Start / Stop Back to Main Work Page
Auto Focus Initiate the auto focus function
▲ / ▼
Manual Focus Buttons
Manually adjust the height of the work table (Z-
axis)
Main Work Page
Press
F4
☼
Navigating to this page:
Functions Page
