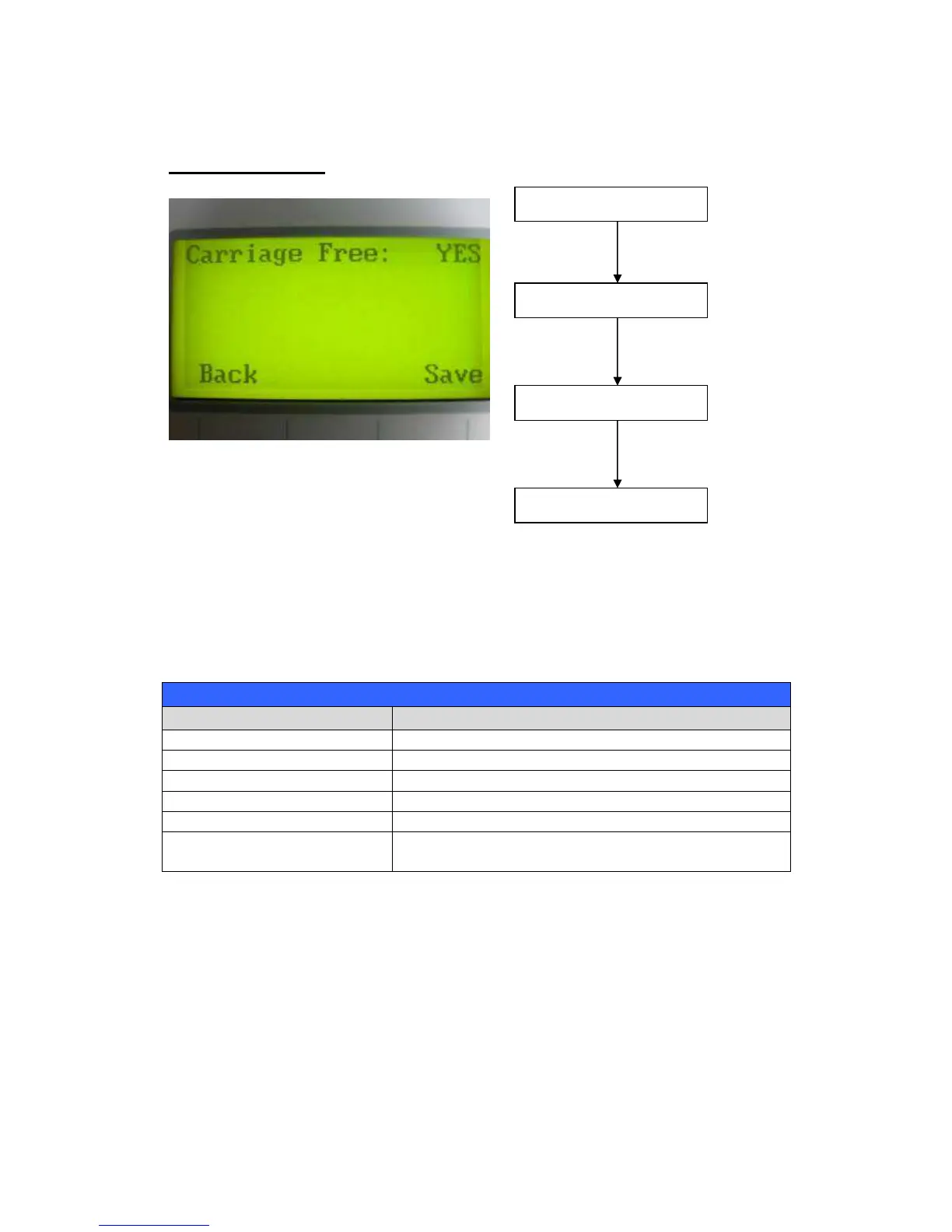

Carriage Free Page
The Carriage Free Page allows you to set whether the laser carriage is locked or free. If the
Carriage Free setting is set to <YES>, then you will be able to manually move the laser carriage
along the X and Y axis by hand with the top door open. Whereas setting the Carriage Free to
<NO> will lock the laser carriage and movement or positioning can only be done by the control
panel.
 Carriage Free YES / NO
Carriage Lock Page
Relevant Buttons
Function
F1 (Back) Back to previous page
F4 (Save) Save your current settings



/



Directional
Cycle Carriage Free between YES / NO
Start / Stop Back to Main Work Page
Auto Focus Initiate the auto focus function
▲ / ▼
Manual Focus
Buttons
Manually adjust the height of the work table (Z-
axis)
Main Work Page
P
ress
F4
☼
Navigating to this page:
Functions Page
Select <
Machine Setting
>
from the menu
Machine Setting Page
Select <
Carriage
Free
>
from the menu
Carriage Free Page
