6 1200C-2000C Fire Alarm Control Panel, Repeater, and Black Box Installation Manual

Connecting the SD2000 common I/O module

The SD2000 common I/O module provides the common inputs and outputs for the

control panel.

The SD2000 module is located in the rear cabinet and is the last module in the group.

It is connected to the LC1502 module.

Note: This module is not included with French or German control panels.

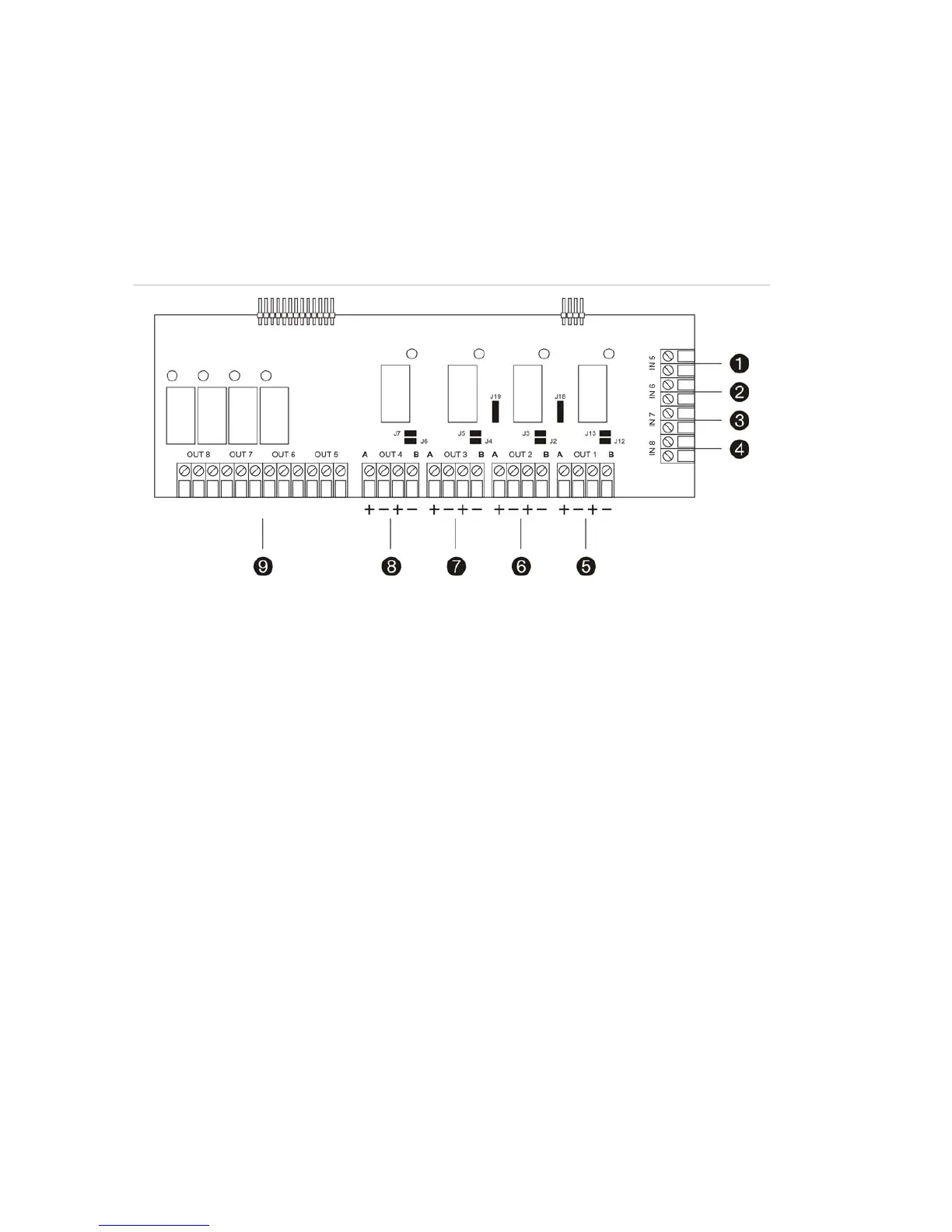

Figure 5: SD2000 common I/O module

1. IN5 fire routing return input (VdS mode only)

2. IN6 fire protection fault input (VdS mode only)

3. IN7 fire routing fault input (VdS mode only)

4. IN8 general input

5. OUT1 fire alarm equipment output

6. OUT2 fire routing equipment output

7. OUT3 fire protection equipment output

8. OUT4 fault routing output

9. OUT5 to OUT8 programmable relays 1 to 4
