1200C-2000C Fire Alarm Control Panel, Repeater, and Black Box Installation Manual 15
Connecting the LON2000 serial communication module
The LON2000 serial communication module allows serial communication between
1200C-2000C series addressable control panels and 700 series conventional control
panels. It cannot be used with repeaters.
The module is installed onto the P13, 20-PIN male connector of the FC1200N or
FC2012 host CPU module located on the inside of the control panel door.

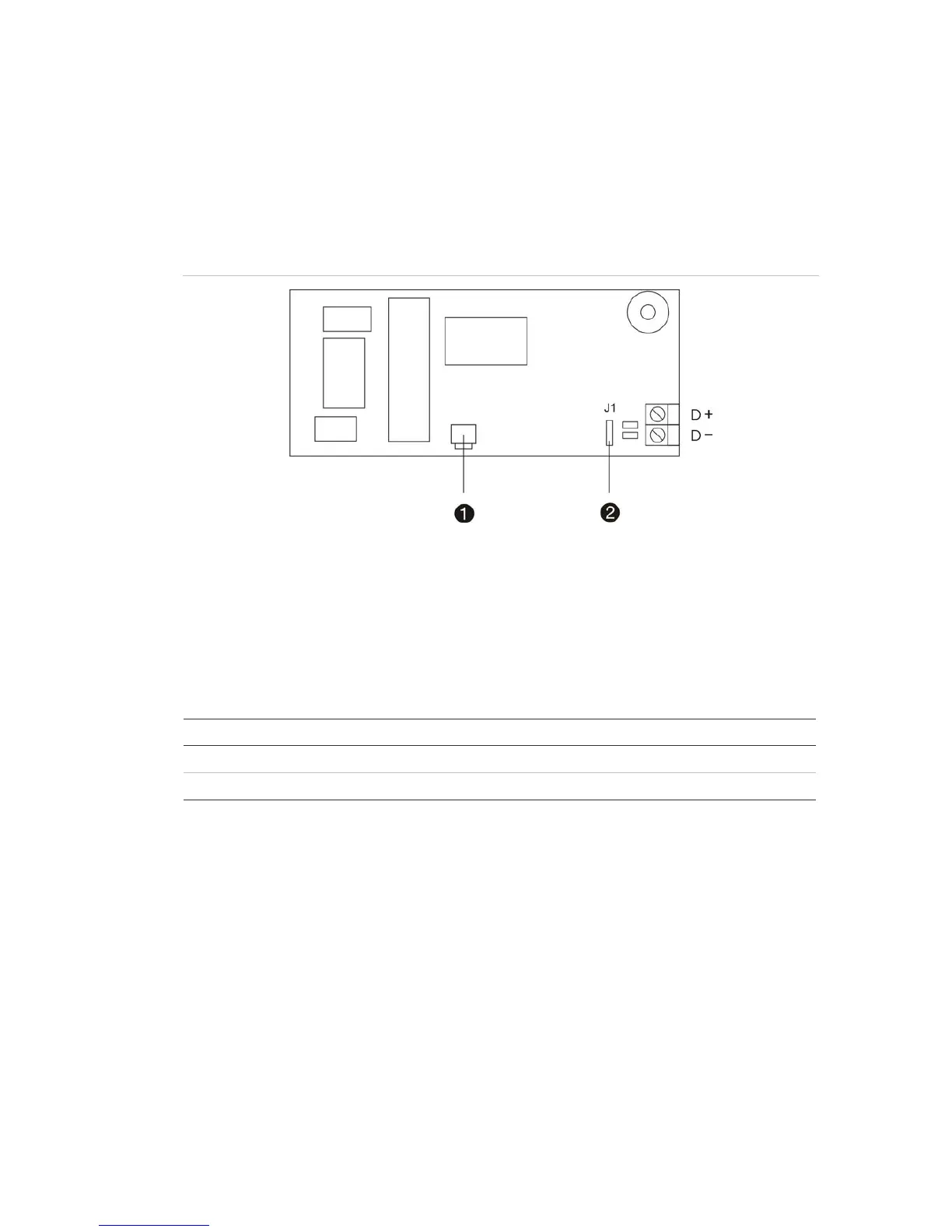

Figure 14: LON2000 serial communication module
1. Service switch
2. Termination jumper (J1)
Termination
If a LON2000 serial communication module is installed into the first or last control
panel of a LON network, then the termination jumper (J1) must be inserted to
terminate the communication port.
Termination jumper (J1) Description
Inserted The serial communication port is terminated with 120
Not inserted The serial communication port is not terminated
