Cabinet layout for 2000C control panels

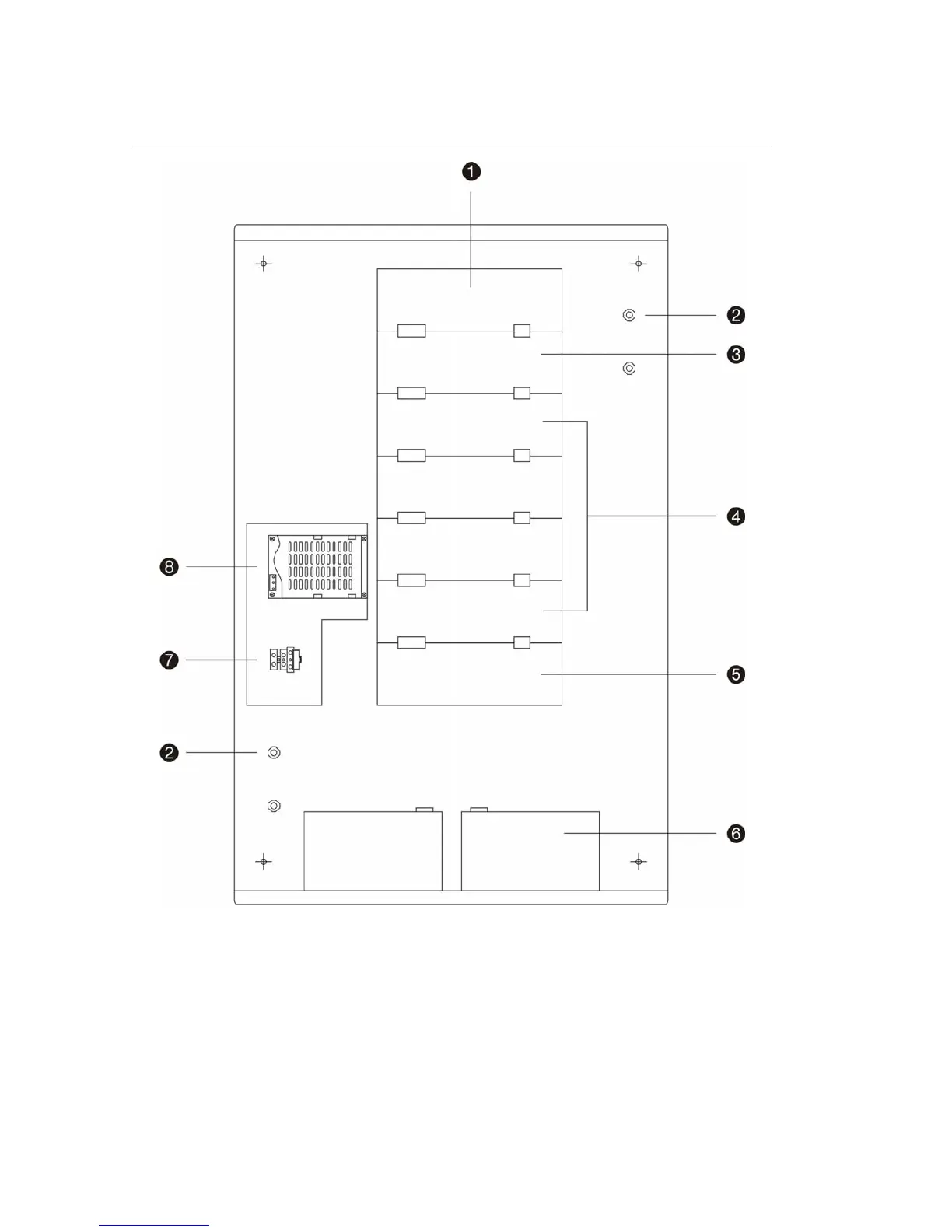

Figure 2: Typical cabinet layout for 2000C control panels
1. FEP2000N mains controller module
2. Earth studs
3. PS1200N power supply interface
module
4. LC1502 loop modules
5. SD2000 common I/O module
6. 12V batteries
7. Fuse terminal block
8. PS2000N power supply unit
For detailed module information for all control panels see “Appendix A: Modules” on
page 35.
