Connecting the FEP2000N main controller module
The FEP2000N main controller module is located in the rear cabinet. It is the first
module of the group and is connected to the PS1200N module.

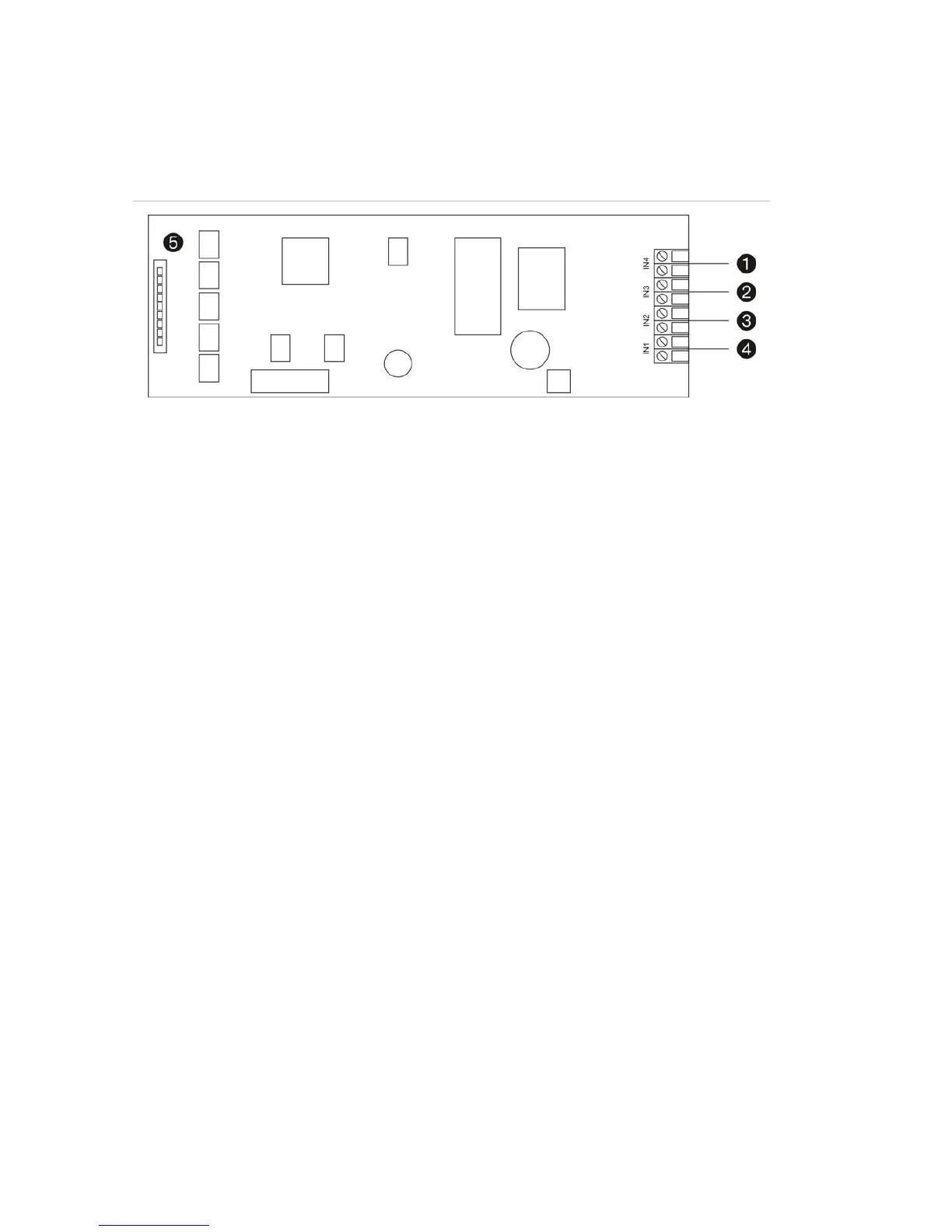

Figure 11: Main controller module auxiliary inputs
1. IN4 auxiliary input 4
2. IN3 auxiliary input 3
3. IN2 auxiliary input 2
4. IN1 auxiliary input
5. FC1200N or FC2012 host CPU module connector
