Input function for VdS mode
In VdS mode inputs 5 to 8 are allocated as follows:
• General input (IN8)
• Fault routing fault input (IN7)
• Fire protection fault input (IN6)
• Fault routing return input (IN5)

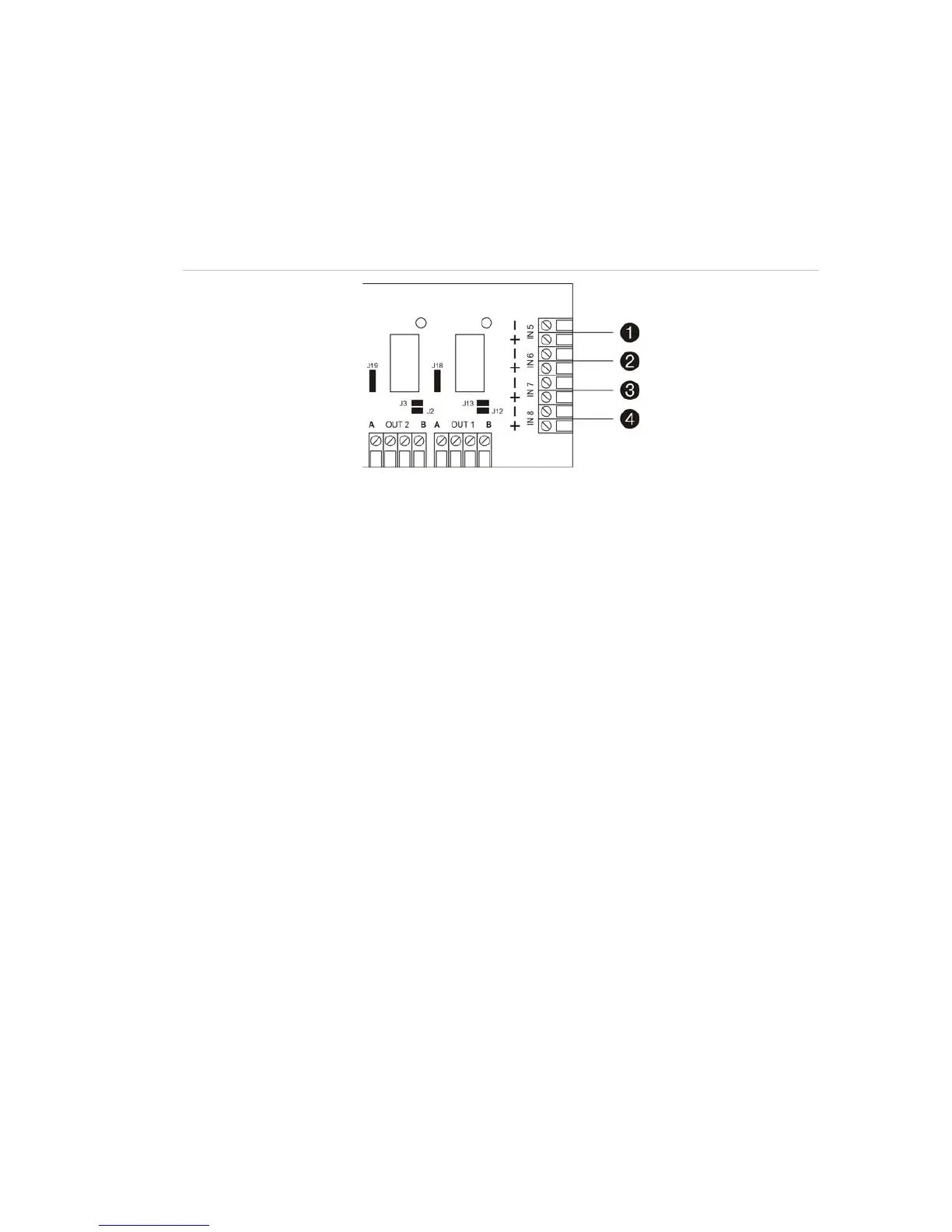

Figure 10: Common I/O module supervised inputs in VdS mode
1. IN5 general input OR fault routing return input (VdS mode)
2. IN6 general input OR fire protection fault input (VdS mode)
3. IN7 general input OR fault routing fault input (VdS mode)
4. IN8 general input
