10 1200C-2000C Fire Alarm Control Panel, Repeater, and Black Box Installation Manual
Configuration of output 4
Jumper configuration options for relay output 4 are shown below. The switch is
closed when there is a fault and open when there is no fault.

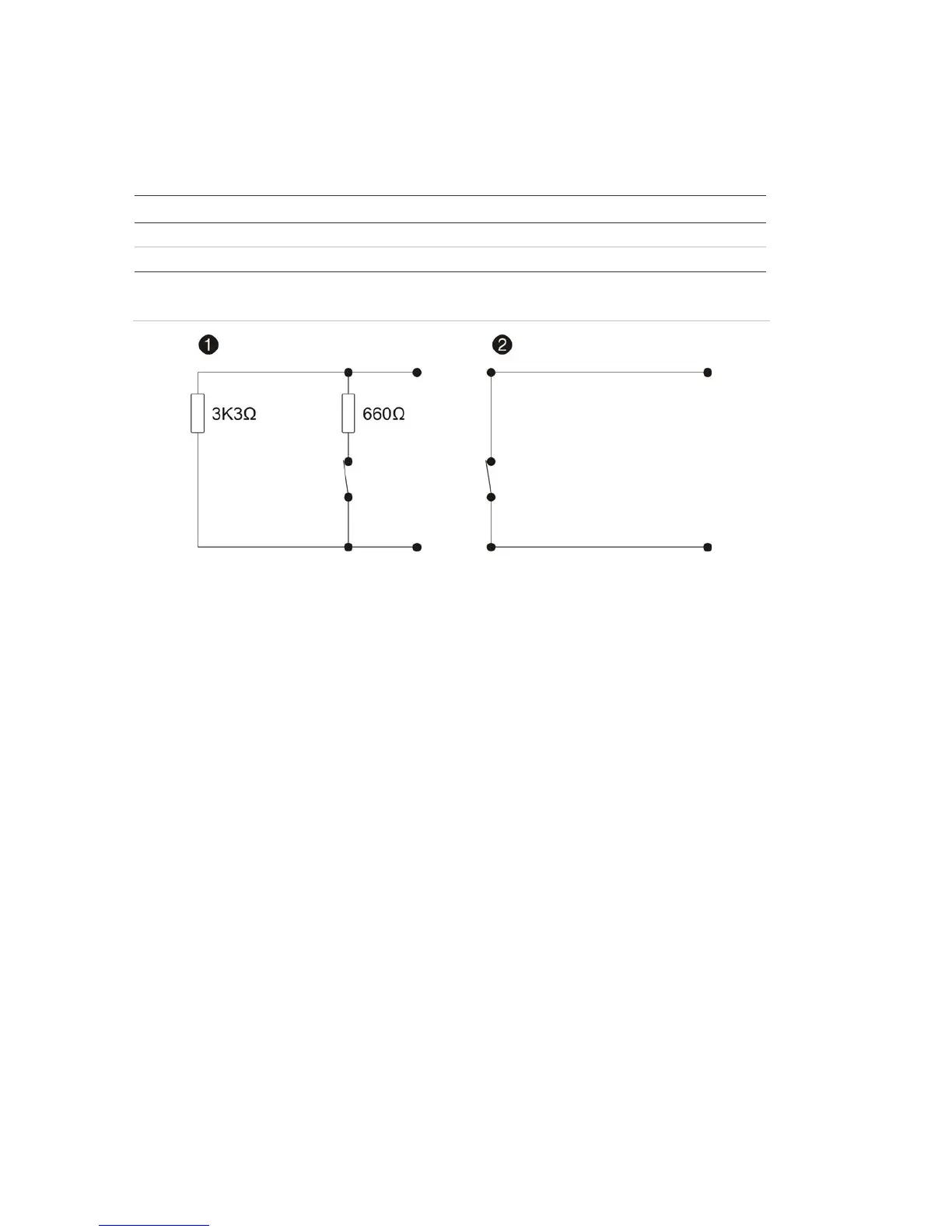

Jumper configuration options for output 4 with Class B loops
Output Output number Option 1 Option 2 Comments
Fire routing OUT4 J6 IN J6 OUT
J7 OUT J7 IN
Figure 9: Jumper configuration options
Supervised inputs
The common I/O module has four inputs.
Input function for EN, NEN, and EP modes
In EN, NEN, and EP mode the four inputs have no dedicated function and are freely
programmable using I/O logic.
