8 469 PC SOFTWARE 8.3 USING 469PC

8.3 USING 469PC 8.3.1 SAVING SETPOINTS TO A FILE

Setpoints must be saved to a file on the local PC before performing any firmware upgrades. Saving setpoints is

also highly recommended before making any setpoint changes or creating new setpoint files. To save setpoints

to a file on the local PC, follow the procedure below.

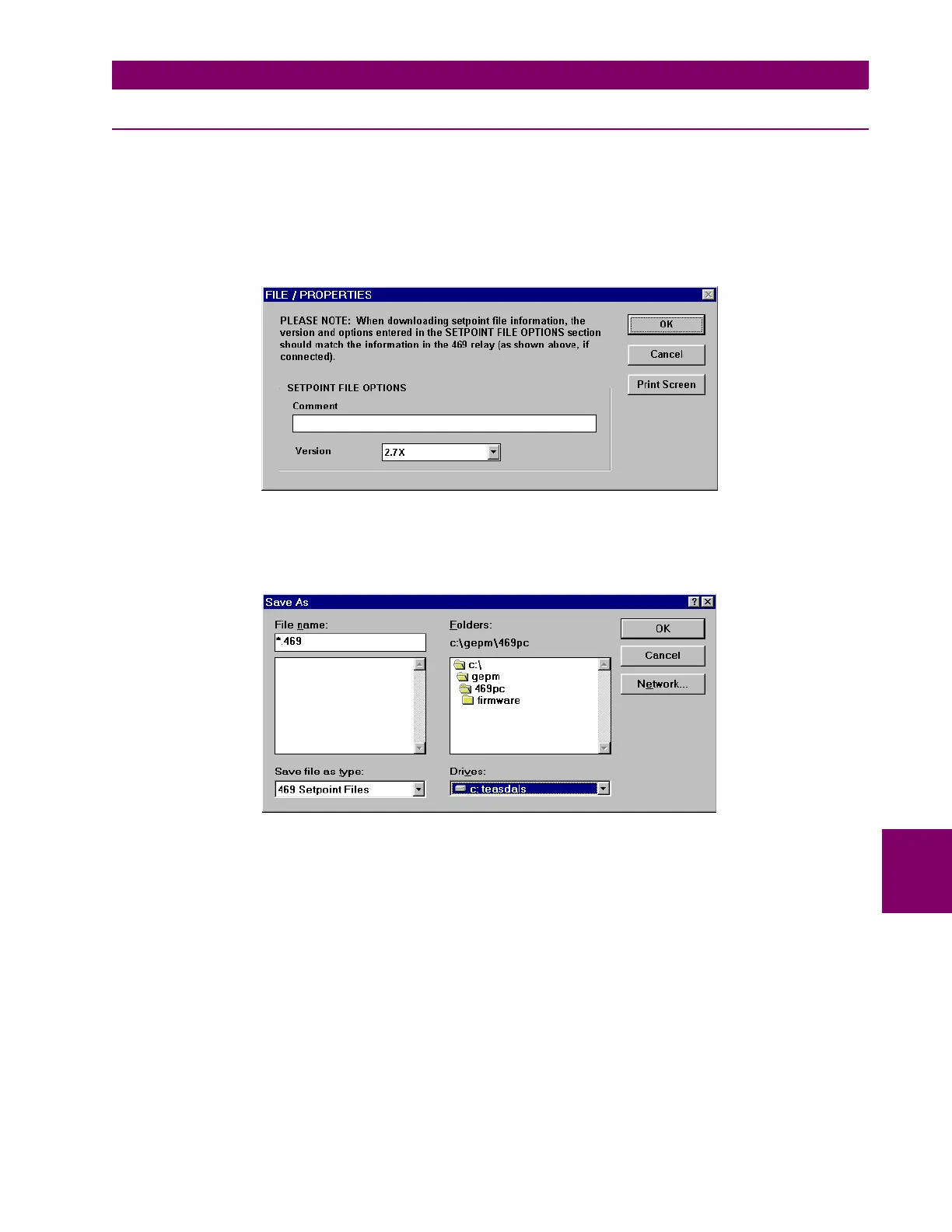

1. Select the

File > Properties

menu item. The dialog box below appears, allowing for the configuration of

the 469PC software for the correct firmware version. 469PC needs to know the correct version when creat-

ing a setpoint file so that setpoints not available in a particular version are not downloaded into the relay.

2. When the correct firmware version is chosen, select the

File > Save As

menu item. This launches the fol-

lowing dialog box. Enter the filename under which the setpoints are saved in the

File Name

box or select

any displayed file names to update them. All 469 setpoint files should have the extension

469

(for exam-

ple,

motor1.469

). Click

to proceed.

3. The software reads all the relay setpoint values and stores them to the selected file.
