GE 469

4-34 469 Motor Management Relay GE Power Management
4.6 S5 THERMAL MODEL 4 SETPOINT PROGRAMMING
4

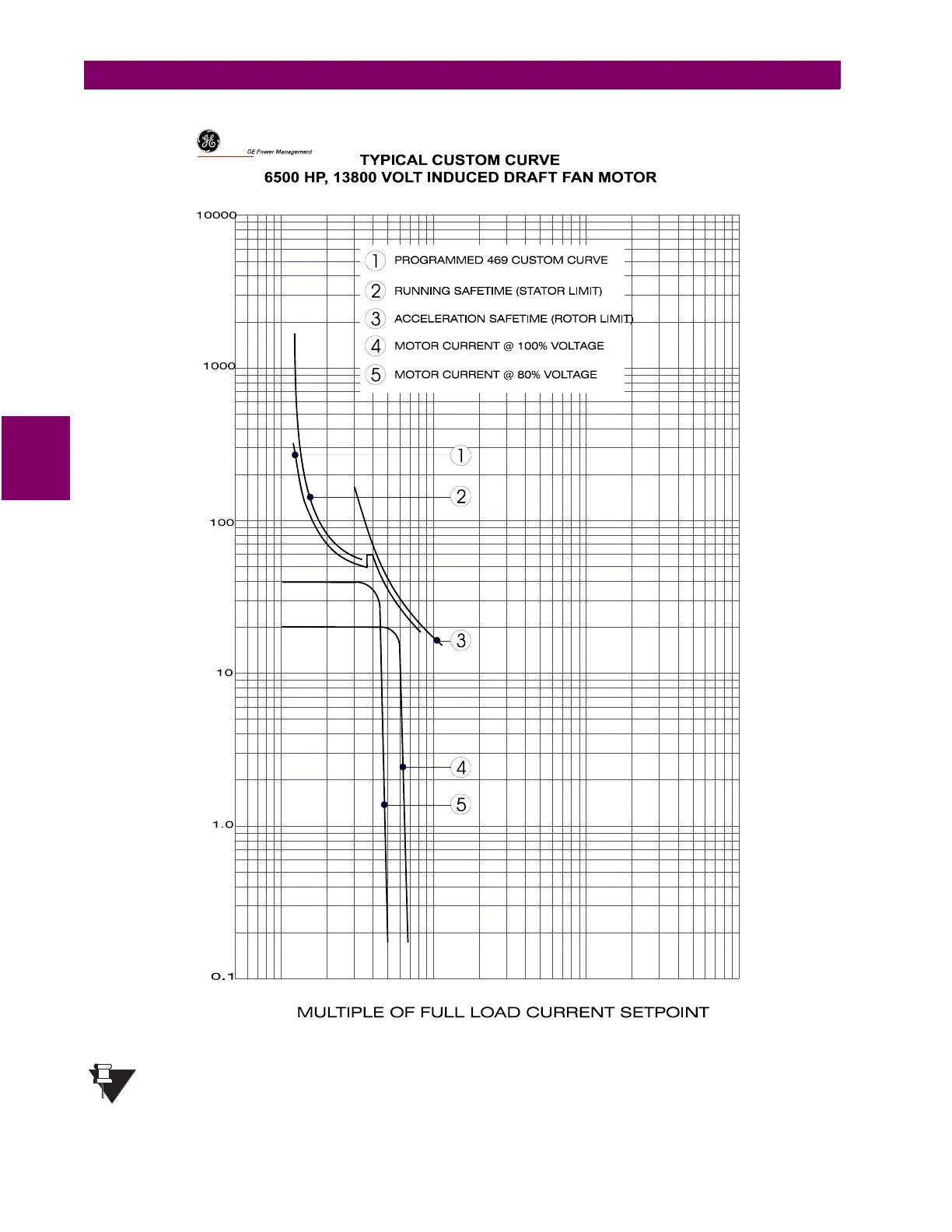

Figure 4–9: CUSTOM CURVE EXAMPLE
During the interval of discontinuity, the longer of the two trip times is used to reduce the
chance of nuisance tripping during motor starts.
TIME TO TRIP IN SECONDS
0.5
1
10
100
1000
NOTE
