GE 469

4–20 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 4: INTERFACES
Z Click the «+» box to expand the desired device trees.
The following list of headers is shown for each device:
• Device Definitions
• Settings
• Actual Values
• Commands
• Communications
Z Expand the Settings > Relay Setup list item
Z Double click on Front Panel to open the Front Panel Settings window as
shown below:

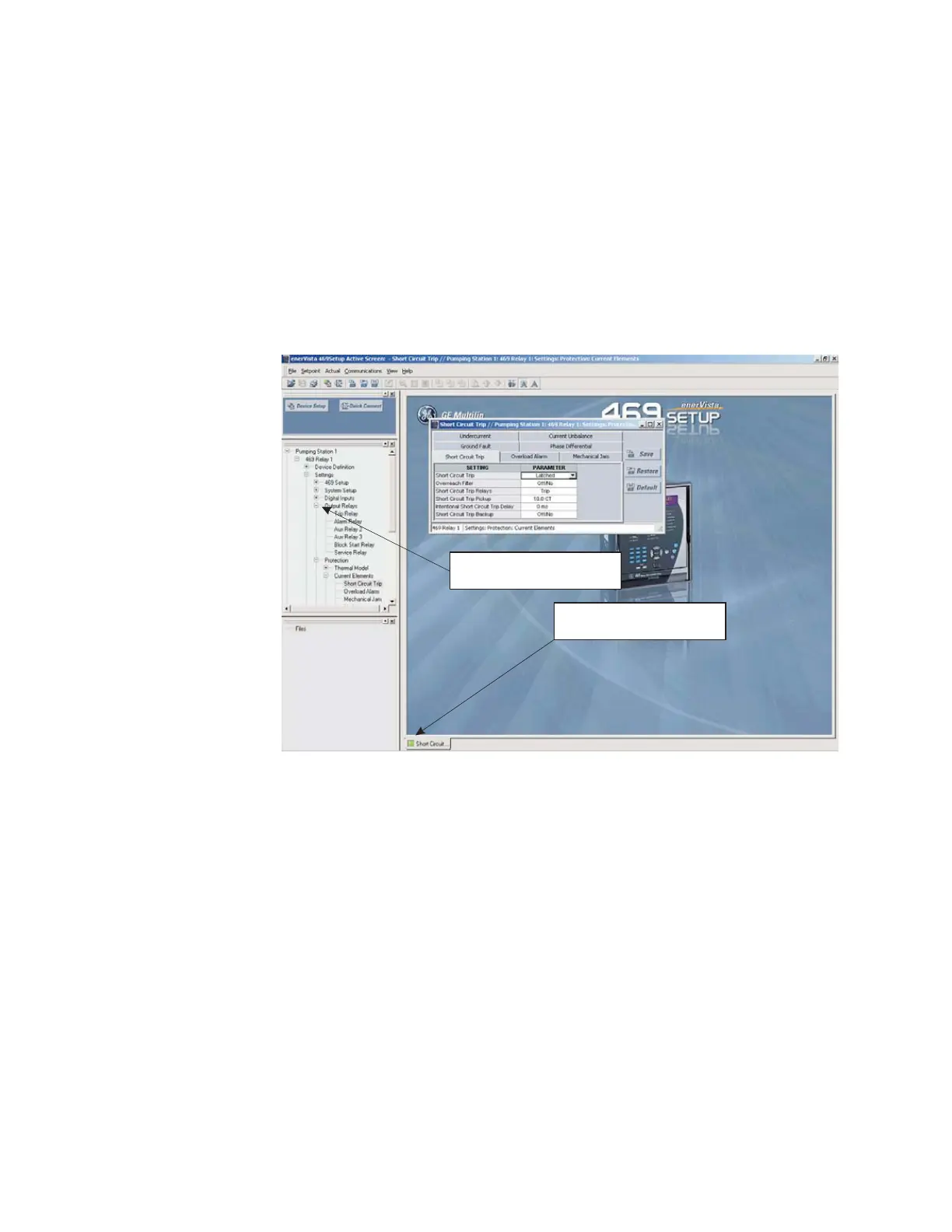

FIGURE 4–5: Main Window after Connection
The Front Panel Settings window will open with a corresponding status indicator on the
lower left of the EnerVista 469 Setup window.
If the status indicator is red, verify that the serial cable is properly connected to the relay,
and that the relay has been properly configured for communications (steps described
earlier).
-
Expand the Site List by double
clicking or by selecting the [+] box
Communications Status Indicator
Green = OK, Red =No Comms
