3.1.7 Terminal Locations

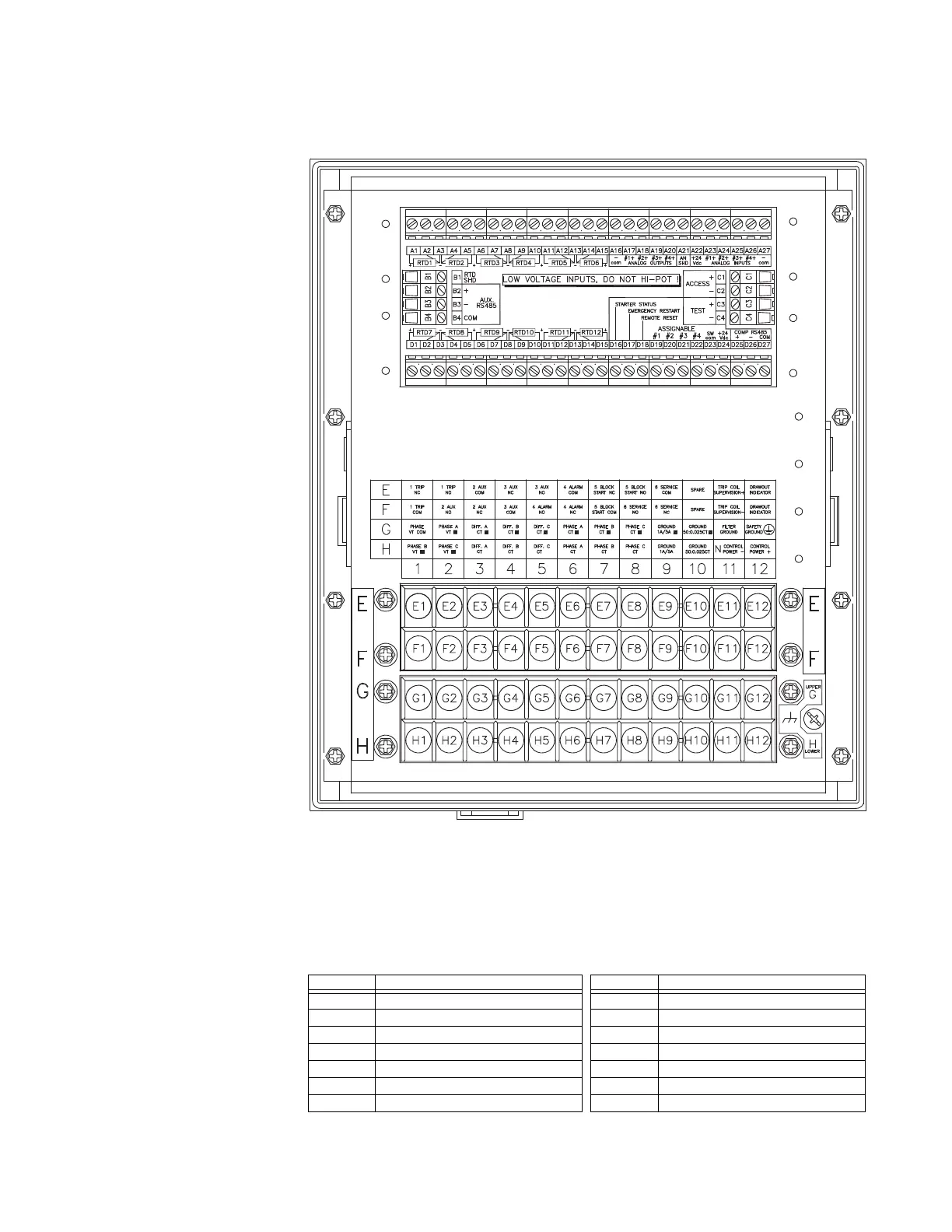

FIGURE 3–11: Terminal Layout
3.1.8 Terminal List
Table 3–1: 469 Terminal List
Terminal Description Terminal Description
A01 RTD #1 Hot D21 Assignable Switch 3
A02 RTD #1 Compensation D22 Assignable Switch 4
A03 RTD Return D23 Switch Common
A04 RTD #2 Compensation D24 Switch +24 V DC
A05 RTD #2 Hot D25 Computer RS485 +
A06 RTD #3 Hot D26 Computer RS485 –
A07 RTD #3 Compensation D27 Computer RS485 Common
