CHAPTER 4: INTERFACES
469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL 4–31

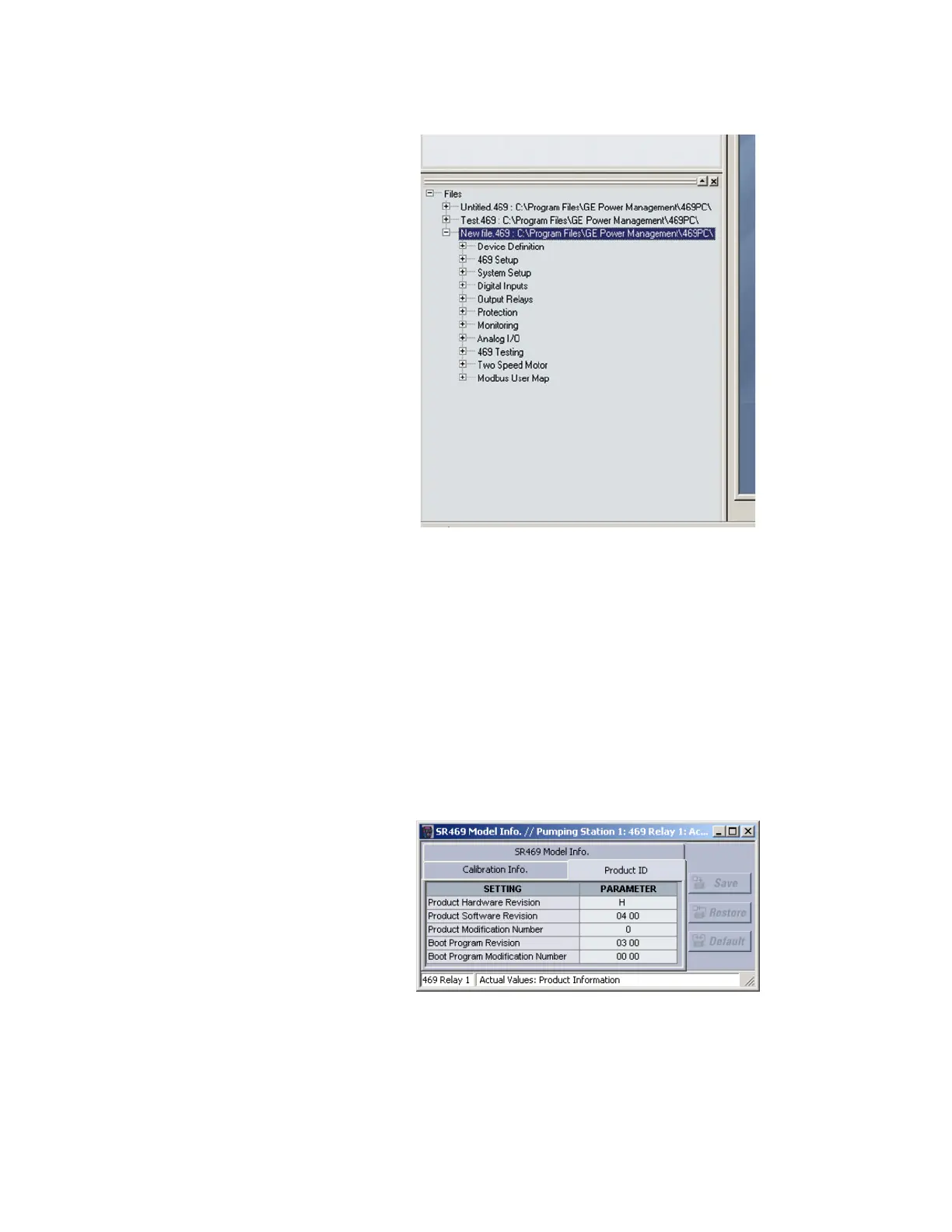

Z Enter the appropriate settings manually to complete the new Settings
File.
Upgrading Settings Files to a New Revision
It is often necessary to upgrade the revision code for a previously saved Settings file after
the 469 firmware has been upgraded (for example, this is required for firmware upgrades).
This is illustrated in the following procedure.
Z Establish communications with the 469 relay.
Z Select the Actual > Product Information menu item.
Z Record the Software Revision identifier of the relay firmware as shown
below.
Z Load the Settings file to be upgraded into the EnerVista 469 Setup
environment as described in Adding Settings Files to the Environment
on page 4–24.
Z In the File pane, select the saved Settings file.
