CHAPTER 4: INTERFACES
Z Locate the firmware file to load into the 469.
The firmware filename has the following format:

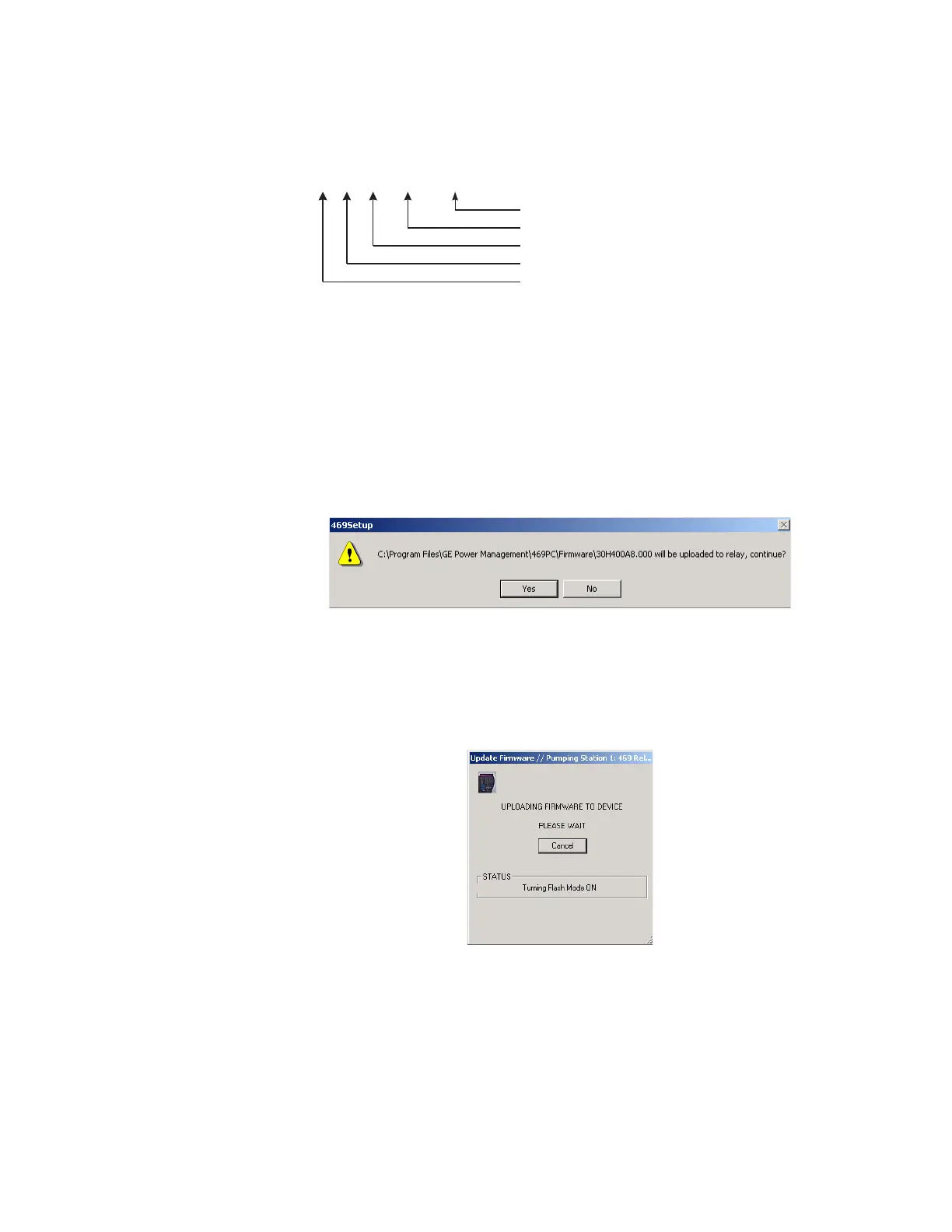

FIGURE 4–6: Firmware File Format
The EnerVista 469 Setup software automatically lists all filenames beginning with ‘30’.
Z Select the appropriate file.
Z Click OK to continue.
The software will prompt with another Upload Firmware Warning window. This will be the
final chance to cancel the firmware upgrade before the flash memory is erased.
Z Click Yes to continue or No to cancel the upgrade.
The EnerVista 469 Setup software now prepares the 469 to receive the new firmware file.
The 469 will display a message indicating that it is in Upload Mode. While the file is being
loaded into the 469, a status box appears showing how much of the new firmware file has
been transferred and how much is remaining, as well as the upgrade status. The entire
transfer process takes approximately five minutes.
The EnerVista 469 Setup software will notify the user when the 469 has finished loading the
file.
Z Carefully read any displayed messages.
Z Click OK to return the main screen.
30I500 A8 . 000
Modification Number (000 = none)
GE Multilin use only
Firmware Version
Required 469 hardware revision
Product code (30 = 469)
