Selecting an actual values window also opens the actual values tree from the
corresponding device in the site list and highlights the current location in the hierarchy.
For complete details on actual values, refer to Chapter 6.
To view a separate window for each group of actual values, select the desired item from
the tree, and double click with the left mouse button. Each group will be opened on a
separate tab. The windows can be re-arranged to maximize data viewing as shown in the
following figure (showing actual current, voltage, and motor status values tiled in the same
window):

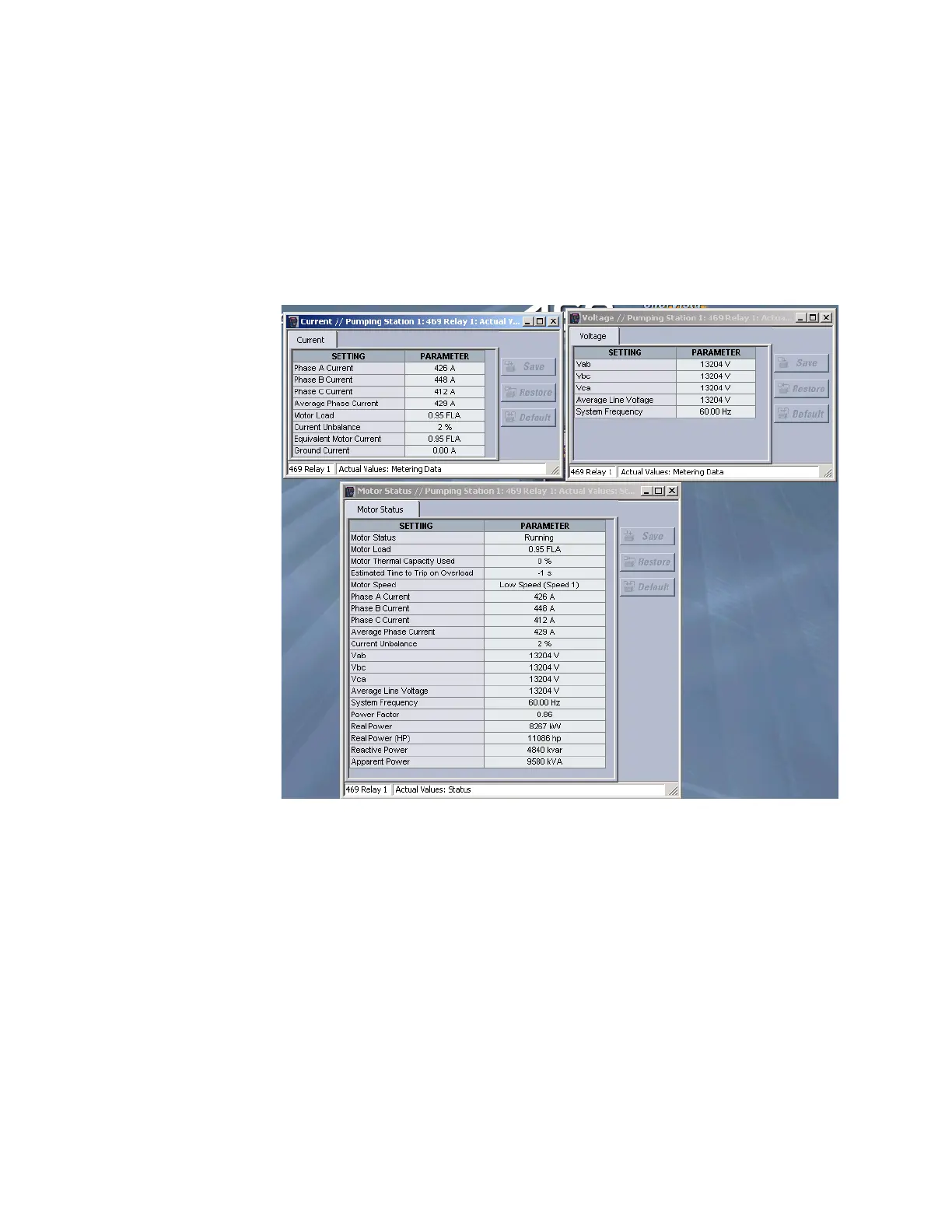

FIGURE 4–10: Actual Values Display
