CHAPTER 4: INTERFACES

469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL 4–51

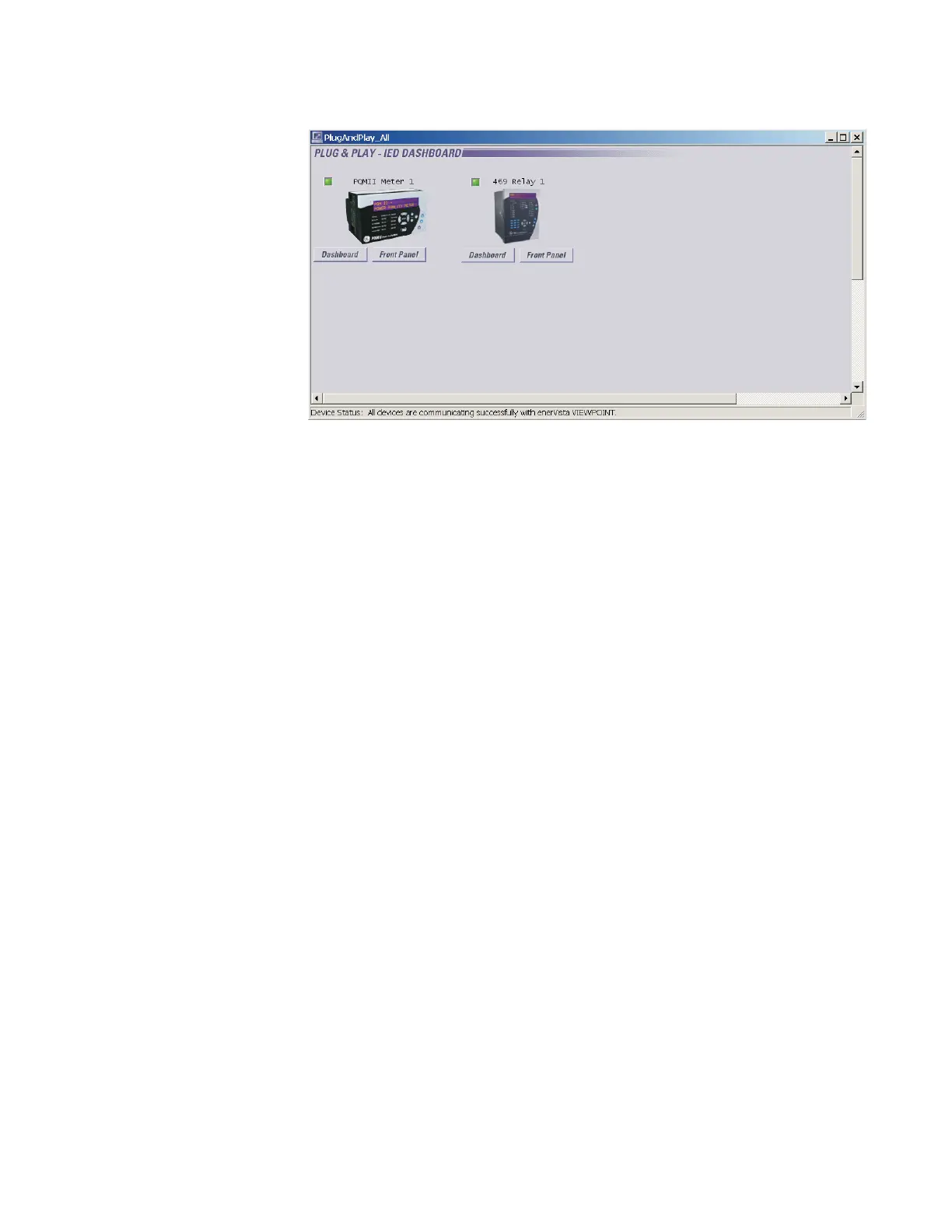

FIGURE 4–13: ‘Plug and Play’ Dashboard

Z Click the Dashboard button below the 469 icon to view the device

information.

We have now successfully accessed our 469 through EnerVista

Viewpoint.
