3–4 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION

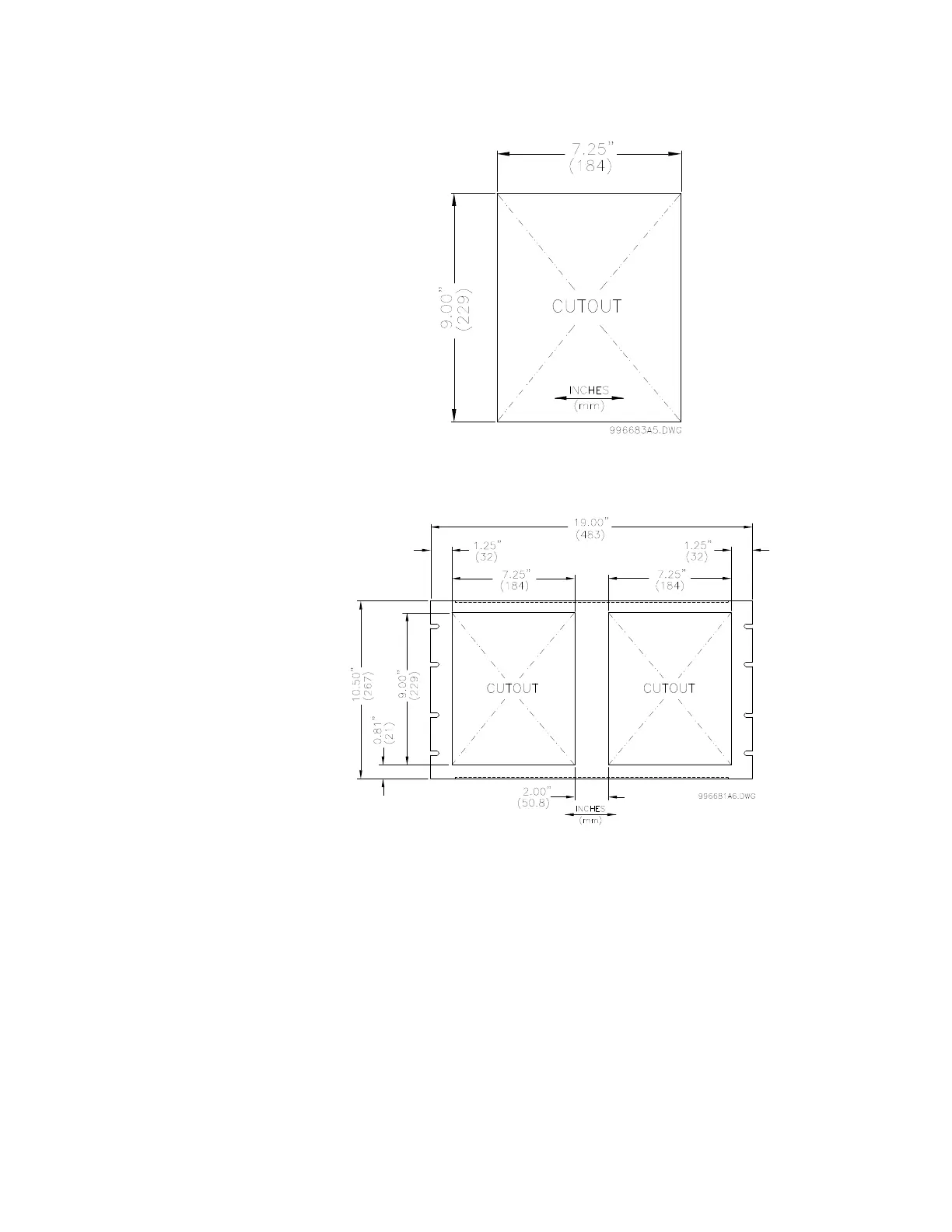

FIGURE 3–4: Single 469 Cutout Panel
FIGURE 3–5: Double 469 Cutout Panel
After the mounting hole in the panel has been prepared, slide the 469 case into the panel
from the front. Applying firm pressure on the front to ensure the front bezel fits snugly
against the front of the panel, bend out the pair of retaining tabs (to a horizontal position)
from each side of the case as shown below. The case is now securely mounted, ready for
panel wiring. If additional support is desired, the SR optional mounting kit may be ordered.
