3–6 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
Z While holding the latch raised, grasp the locking handle in the center
and pull firmly, rotating the handle up from the bottom of the unit until
movement ceases.

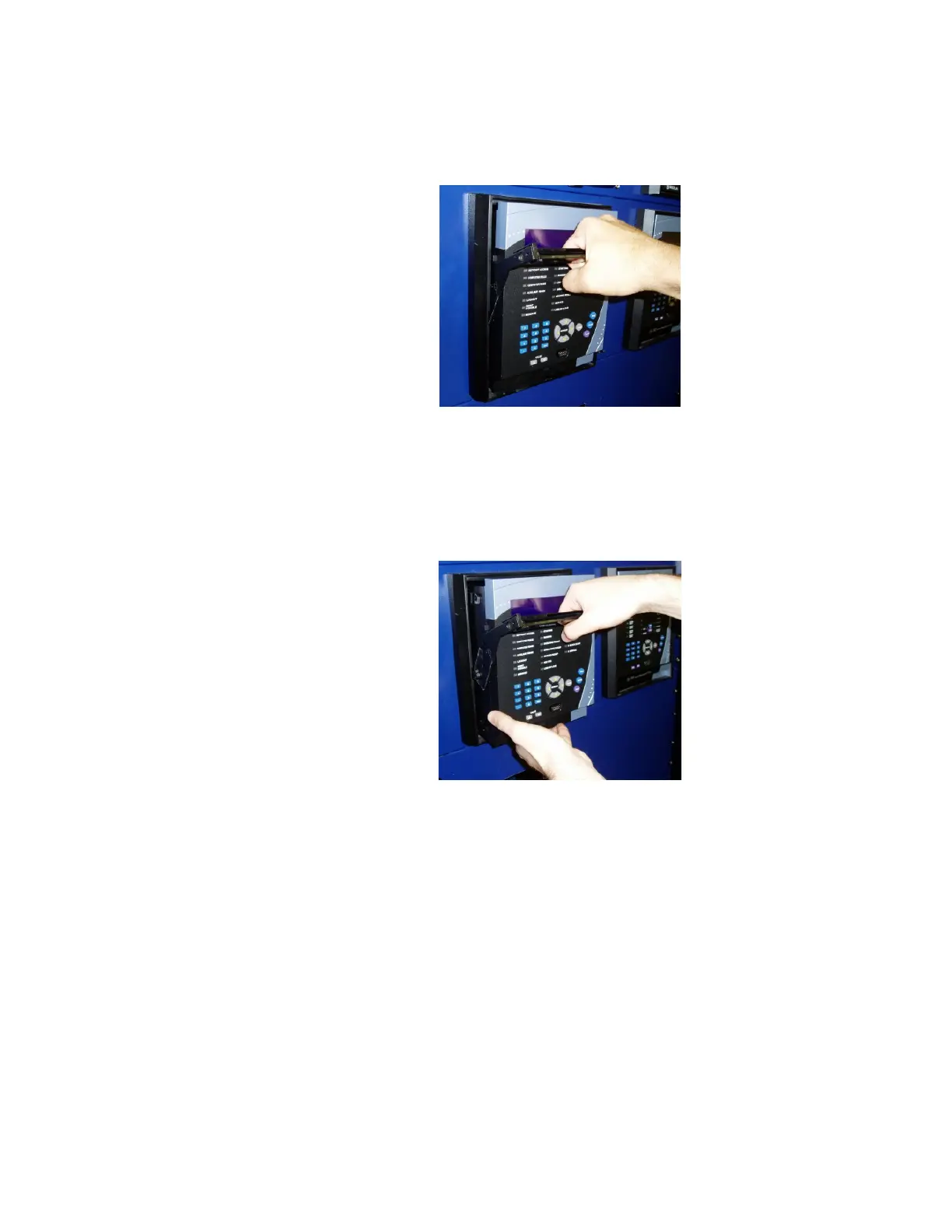

FIGURE 3–8: Rotate Handle to Stop Position
Once the handle is released from the locking mechanism, the unit can freely slide
out of the case when pulled by the handle. It may sometimes be necessary to
adjust the handle position slightly to free the unit.
FIGURE 3–9: Slide Unit out of Case
To insert the unit into the case:
Z Raise the locking handle to the highest position.
Z Hold the unit immediately in front of the case and align the rolling guide
pins (near the hinges of the locking handle) to the guide slots on either
side of the case.
Z Slide the unit into the case until the guide pins on the unit have engaged
the guide slots on either side of the case.
Z Grasp the locking handle from the center and press down firmly,
rotating the handle from the raised position toward the bottom of the
unit.
