Concord Ultra
13
Hardwire Interior Speaker (60-528)
For interior siren applications. Connect the speaker to the panel as shown in Figure 9.
Connect only the large speaker to the panel terminals 7 and 8 as shown. The smaller
speaker cannot handle to output of terminals 7 and 8. To avoid damaging the speaker,
the smaller speaker should not be connected to terminals 7 and 8.
Connect two units to the panel terminals with speakers in series (16-ohms), as shown in
Figure 10.

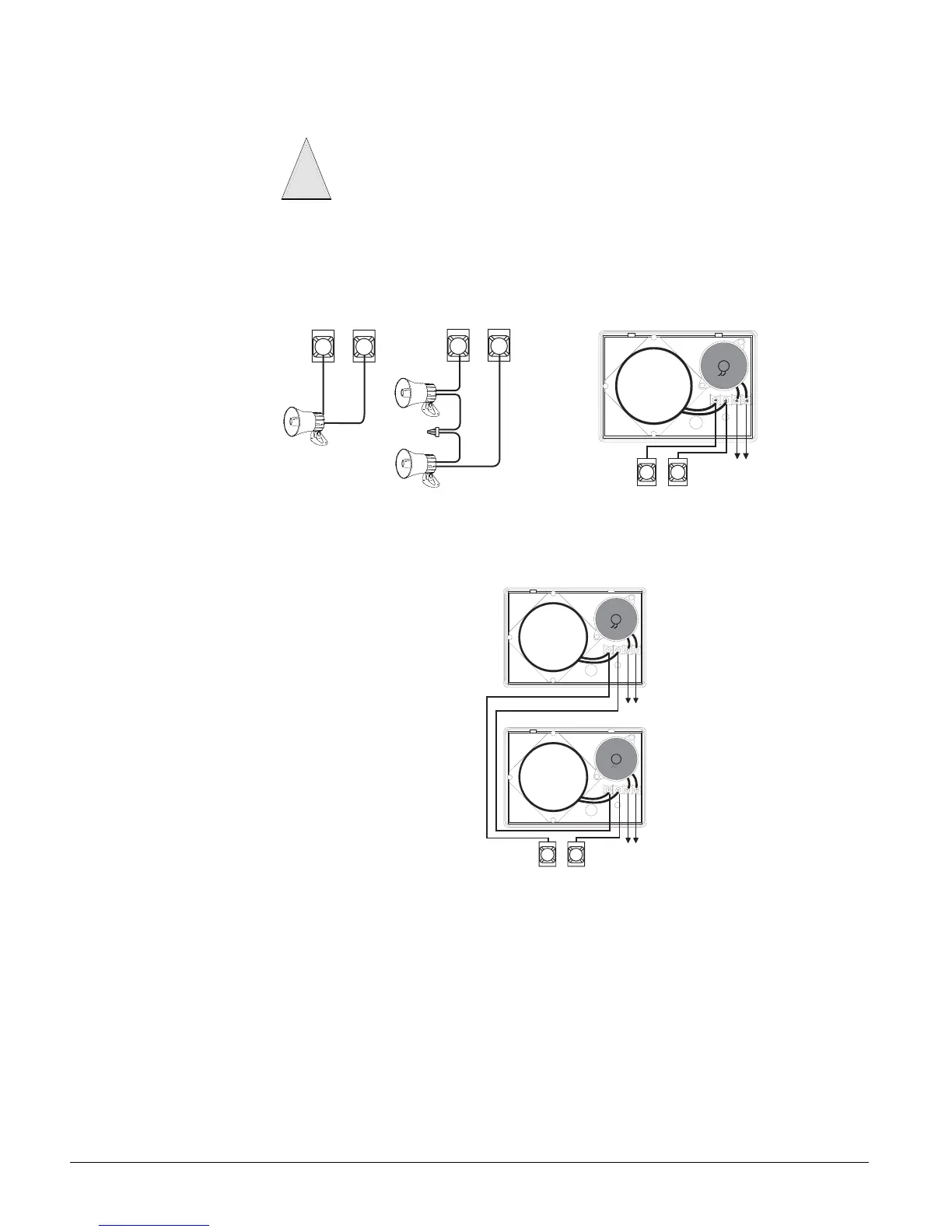

Figure 9. Wiring Speakers
Figure 10. Wiring Two Hardwire Interior Speakers w/Dual Speaker Units to Panel Terminals
Connecting Piezo Sirens
Output 1
Onboard output 1 (OUT 1—terminal 9) is an open-collector (switched path-to-ground), program-
mable output that can handle a maximum of 200 mA current sink. The default setting (01614)
activates the output 15 seconds after a police or fire alarm condition occurs. This allows you to
connect a piezo siren without changing the output configuration number in programming. This
output is typically used for exterior siren application.
Output 2
Onboard output 2 (OUT 2—terminal 10) is an open-collector (switched path-to-ground), pro-
grammable output that can handle a maximum of 200 mA current sink. The default setting
Caution
!
Splice
Speaker
Speaker
2 8-Ohm Speakers in
Series (16 Ohms)
87
Speaker
Not Used
Panel
Terminals
7
8
7
8
Exterior
Interior
Not Used
Not Used
Speaker
Ter minals
Panel
