GE Advisor MASTER ATS111 series

ATS Control Panel
Manager's manual
6
The Advisor MASTER keypad

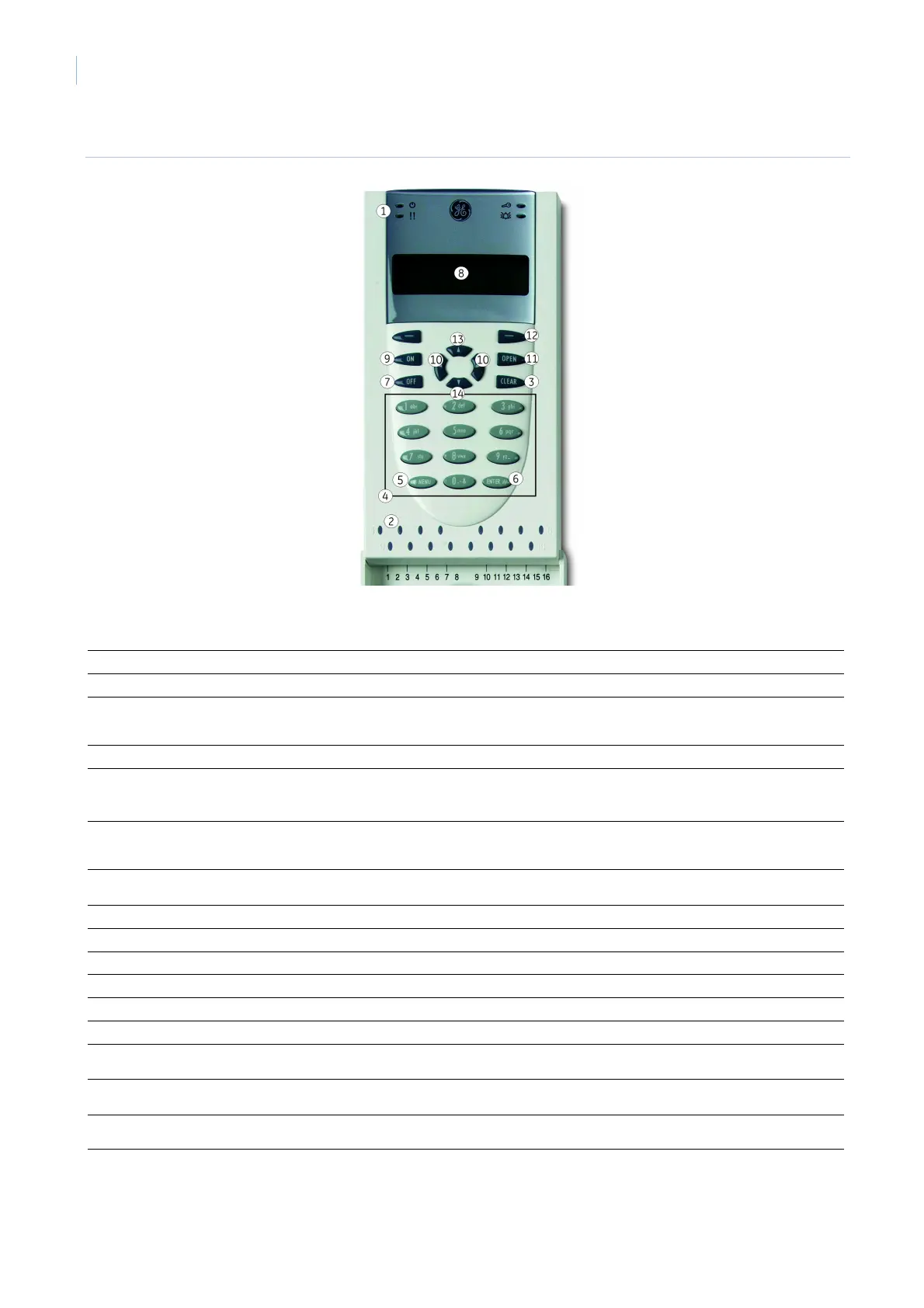

Figure 1. ATS111x keypad
The ATS111x keypad
1
System LEDs
• Displays system main power, system faults and alarm.
2
Area LEDs
• Displays which areas are armed or in alarm.
3
CLEAR
• Exits the current function.
3+D
3+E
[CLEAR] + ▲
[CLEAR] + ▼
• Increases the keypad buzzer volume.
• Decreases the keypad buzzer volume.
4
Alphanumeric buttons
• Enters information and codes.
5
MENU*
• Displays the menu login prompt.
• Backspace to correct an error.
• Scrolls backwards in the menu.
5+D
5+E
MENU+ ▲
MENU+ ▼
• Increases the LCD contrast.
• Decreases LCD contrast.
6
ENTER
• Completes a step.
• Decreases LCD contrast.
7
OFF
• Used after entering your PIN code to disarm the system.
8
LCD Display
• Displays messages.
9
ON
• Used after entering your PIN code to arm the system.
A
Left/Right arrows (◄&►)
• For future use.
B
OPEN
• Opens a door via a valid code (if programmed)
C
For future use
• For future use.
D
Up arrow (▲)
• Scrolls up the menu list
• Updates the information displayed.
E
Down arrow (▼)
• Scrolls down the menu list
• Updates the information displayed.
Open + (1)-(6)
• Used to perform special tasks. These tasks have to be programmed by the
installer.
0 + (▲)
0 + (▼)
• Changes the mode of word breaking on the end of the display line:
immediate word breaking / hyphenation / no word breaking (4-lines LCD
keypads only - ATS1115/1116).
