GEK-7303 Low Voltage Power Circuit Breakers

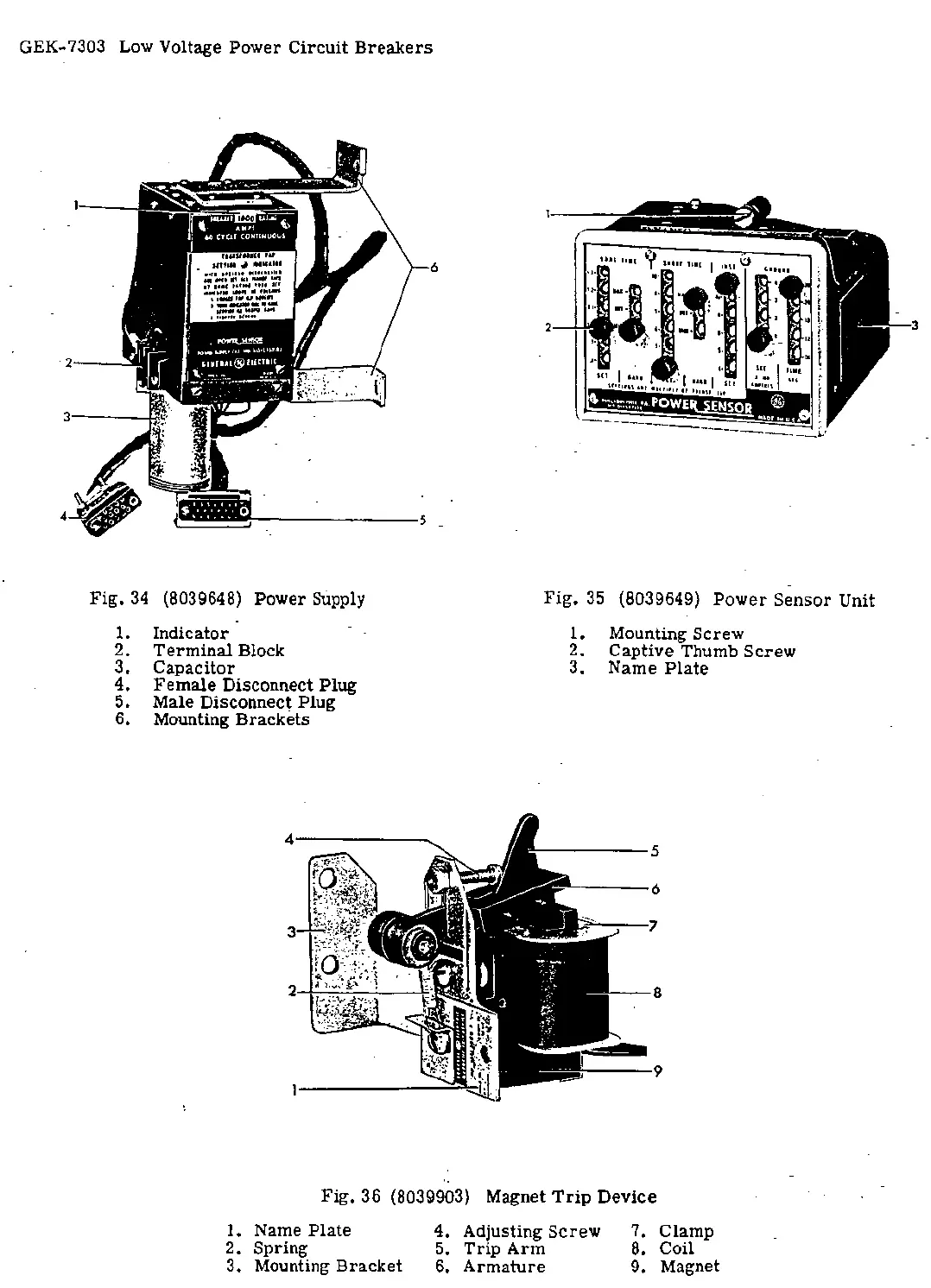

Fig. 34 (8039648) Power Supply
1. Indicator
2. Terminal Block
3. Capacitor
4. Female Disconnect Plug
5. Male Disconnect Plug
6. Mounting Brackets
6
2
--. __ .,
Fig. 35 (8039649) Power Sensor Unit
1. Mounting Screw
2~ Captive Thumb Screw
3. Name Plate
Fig. 36 (8039903) Magnet Trip Device
1. Name Plate
2. Spring
3. Mounting Bracket
4. Adjusting Screw
5. Trip Arm
6. Armature
7. Clamp
8. Coil
9. Magnet
3
